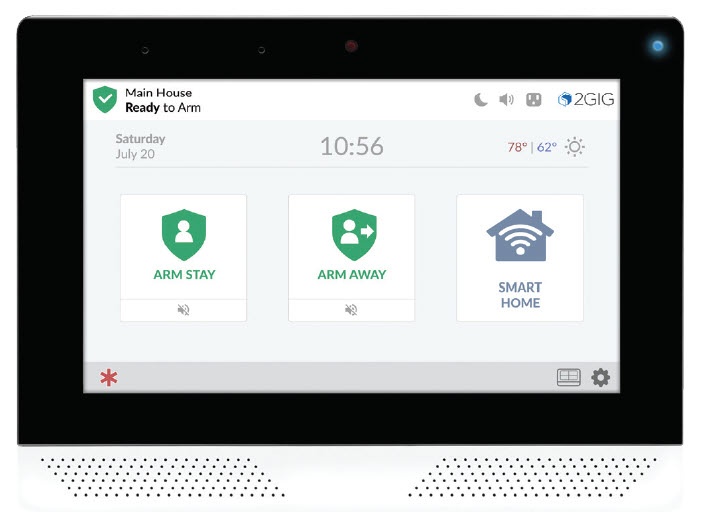

2GIG EDGE

1. On the home screen, tap .
2. Enter the installer code.
3. Tap Installer Toolbox.
4. Tap System Test.
5. Tap Cell Radio Test & Status.
6. Tap Test Cell Radio.

Upon completion, the panel displays Cell radio test successful. Contact CS to check reports.

The serial number can be found in programming and is also labeled IMEI on the panel. For more information, see Find the serial number for a 2GIG EDGE.

• 345 MHz
• eSeries encrypted sensors
• E+ sensors supported on firmware 1.3+

100 user codes (including master code, duress code, installer code)

Supports 4- and 6-digit user codes. Programmable in Q102.

Supports up to 10 Image Sensors

Panel or module requirements

• Panel firmware version A3.1.0.011+
• The 2GIG XCVR3 Transceiver Adapter for the Image Sensor must be installed in the panel

Compatible Image Sensor versions

• ADC-IS-300-LP

Major feature compatibility:

• Local Network Rediscovery: All panel versions
• Node Neighbors: All panel versions
• Link Quality Indicators:  All panel versions
• Remote Add/Delete: All panel versions
• Network Wide Inclusion: All panel versions
• Z-Wave Plus: All panel versions
• Z-Wave Security 2 (S2): All panel versions
• Z-Wave SmartStart: All panel versions
