2GIG EDGE - Battery Replacement
|
The content on this page has been written by a third party and is not maintained by Alarm.com. Any questions regarding the installation, maintenance, and/or usage instructions in this guide should be directed to the device manufacturer. To access the full installation guide, see 2GIG EDGE - Installation Guide. |
The 2GIG EDGE requires a special battery pack available for purchase from the manufacturer.
To replace the battery in a 2GIG EDGE:
If desired, put the system in test mode with the monitoring station before proceeding. For more information, see Put a system On Test with the monitoring station.
- Disarm the panel.
- Power off the panel. Disconnect the transformer from the power outlet.

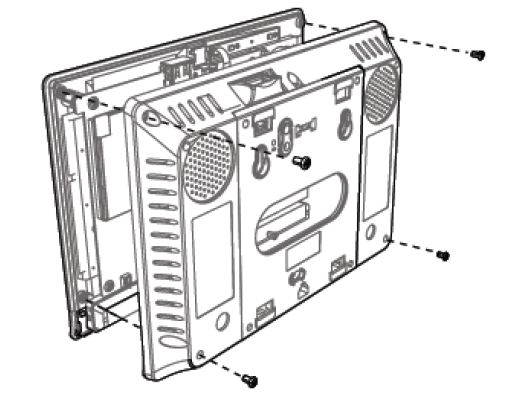

- Remove the four screws that secure the back panel, and then carefully remove the back cover from the panel.
- Carefully detach the power cable from the battery to be replaced.
- Carefully detach the battery from the panel.
Note: You may need to apply a reasonable amount of force to separate the battery from the adhesive that holds it in place.
- Peel off the adhesive strip from the back of the new battery.
- Insert the new battery, and attach the power cable.

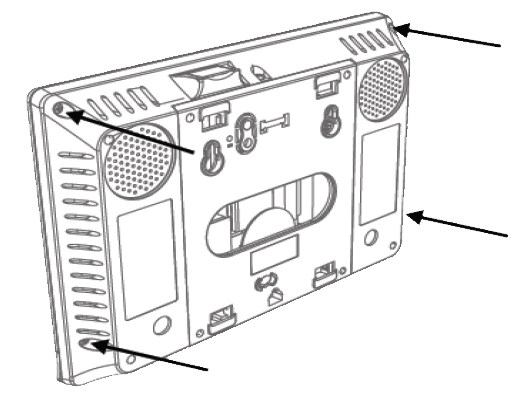

- Replace the back cover.
- Restore AC power.
Important considerations
- Batteries must not be misused.
- Lithium batteries have a cycle life, so replace the old battery when it reaches its service life.
- While replacing the battery pack, it’s important to handle it with care. Do not drop or damage the battery. Follow replacement instructions, and transport the old battery pack in a special battery fireproof bag. Consult local regulations to dispose of old batteries.
- Must keep the battery pack away from children.
