Indoor Fixed w/IR (ADC-V521IR)
Quick Facts

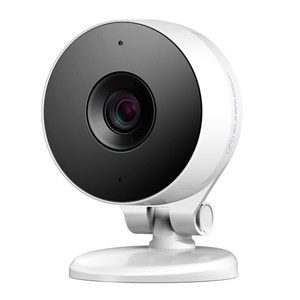

| Device image |  |
|---|---|
| Live view resolution | 1280x960, 800x600, 640x480, 320x240, 176x144 |
| Field of view | 112° (horizontal) 100° (vertical) |
| Night vision |
0 lux with IR on, meters (~15 feet) |
| Enrollment methods |
AP mode, WPS, Ethernet For more information about enrollment, see Indoor Fixed wIR (ADC-V521IR) - Installation Guide. |
| Ethernet compatibility |
Requires included Ethernet dongle, no PoE |
| Wi-Fi compatibility | Compatible with 802.11 b/g/n, 2.4 GHz connections |
| Video Analytics |
Not compatible |
| Video Motion Detection |
Compatible For Video Motion Detection Setup instructions, see Configure Video Motion Detection (VMD) settings for a video device |
| Onboard Recording | Not compatible |
| Two-Way Audio |
Compatible with Two-Way Audio. Note: Requires firmware version IP8137-ALAM-0100d1+. For Two-Way Audio, setup instrcutions see Two-Way Audio Installation and User Guide. |
| Factory Reset |
Location: The Reset button can be found on the back of the camera. Procedure: Hold the Reset button until the LED alternates flashing red and green, which usually happens after 10-15 seconds. For more details about the factory reset process, see Factory reset an ADC-V521IR to its default settings. |
Data Sheets
Installation Guides
Frequently Asked Questions
General information
- Change the Wi-Fi network settings of a video deviceYou can change a video device's network information manually using the Customer website as long as the device has power and is still connected to an active network.
- How well can Alarm.com cameras see in the dark? (night vision, infrared)
- Reconnect a camera to a wireless network if the router, equipment, or Wi-Fi settings change
- Request the wireless signal strength of a video deviceVideo device wireless signal strength can be checked remotely for devices on the customer account at any time using the Customer app or Customer website, or during installation for supported devices using the Customer app. It is generally recommended for video devices to have at least 66% wireless signal strength.
