Indoor Fixed Lens (ADC-V510)
Quick Facts

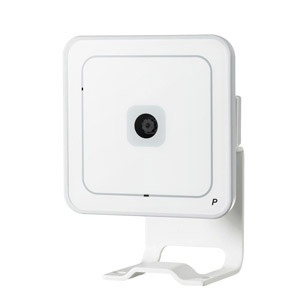

| Device image |  |
|---|---|
| Live view resolution | 640x480, 320x240, 176x144 |
| Field of view | 49.6 (H) x 38.2 (V) degrees |
| Night vision | No night vision, 0.4 lux @ F2.0 |
| Enrollment methods |
Ethernet For more information about enrollment, see Fixed Lens (ADC-V510) - Installation Guide. |
| Ethernet compatibility |
Has 10/100Mbps RJ-45 Ethernet port, no PoE |
| Wi-Fi compatibility | Compatible with 802.11 b/g 2.4 GHz connections |
| Video Analytics |
Not compatible |
| Video Motion Detection |
Compatible For Video Motion Detection (VMD) setup instructions, see Configure Video Motion Detection (VMD) settings for a video device. |
| Onboard Recording | Not compcatible |
| Two-Way Audio | Not compatible |
| Factory reset |
Location: The Reset button can be found in the pinhole on the back bottom left corner of the device. Procedure: Hold the Reset button until the LED rapidly flashes red, which usually happens after 60 seconds. For more details about the factory reset process, see Factory reset an ADC-V510 to its default settings. |
Data sheets
Installation guides
- Fixed Lens (ADC-V510) - Installation GuideThe ADC‑V510 fixed‑lens camera is installed by first connecting it to a router with Ethernet and power, enrolling it to an Alarm.com account, and configuring Wi‑Fi settings while still hardwired before final mounting.
How-to troubleshooting guides
Frequently asked questions
- Can the ADC-V510 be used outdoors?No. The ADC-V510 is meant for indoor use only. The operating temperature is 0°C ~ 40°C (32°F ~ 104°F), and the operating humidity is 20% ~ 80% (non-condensing) RH.
General information
- Change the Wi-Fi network settings of a video deviceYou can change a video device's network information manually using the Customer website as long as the device has power and is still connected to an active network.
- Reconnect a camera to a wireless network if the router, equipment, or Wi-Fi settings change
- Request the wireless signal strength of a video deviceVideo device wireless signal strength can be checked remotely for devices on the customer account at any time using the Customer app or Customer website, or during installation for supported devices using the Customer app. It is generally recommended for video devices to have at least 66% wireless signal strength.
- Update the firmware of a video deviceThe firmware of an Alarm.com video device can be updated remotely using the Partner Portal, MobileTech app, or Customer website. Keeping the firmware up-to-date ensures that the device will be compatible with new features.
