Indoor Fixed w/IR (ADC-V522IR)

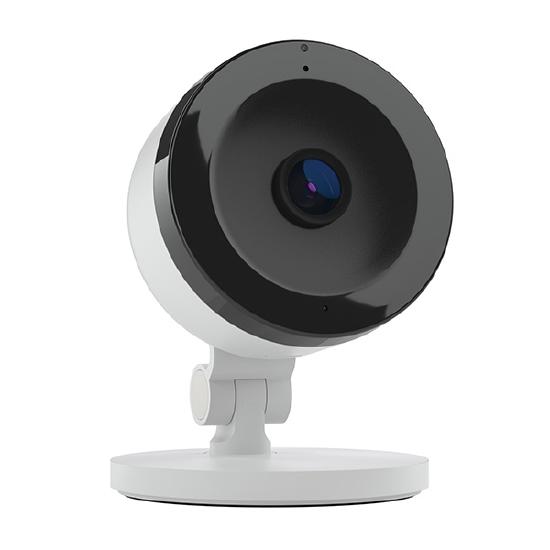

| Device image |  |
|---|---|
| Live view resolution | 1920x1080 |
| Field of view | 113° |
| Night vision |
0 lux with IR, up to 5 meters (~15 feet) |
| Enrollment methods |
AP, WPS, Ethernet mode For enrollment instructions, see Indoor Fixed w/IR (ADC-V522IR) - Installation Guide. |
| Ethernet compatibility |
Has 10/100Mbps RJ-45 Ethernet port Incompatible with PoE |
| Wi-Fi compatibility | Compatible with 802.11 b/g/n/ac, 2.4 & 5 GHz connections |
| Video Motion Detection |
Video Motion Detection: All hardware and firmware versions. For Video Motion Detection (VMD) setup instructions, see Configure Video Motion Detection (VMD) settings for a video device. |
| Video Analytics |
Video Analytics 1.0 requires firmware 0.5.3.113+ For Video Analytics setup instructions, see Configure a Video Analytics rule. |
| Onboard Recording | Incompatible |
| Two-Way Audio |
Half-Duplex Note: Requires hardware version 0101+ and firmware version IP8168-ALAM-0100b9+. For Two-Way Audio setup instructions, see Two-Way Audio Installation and User Guide. |
| Factory Reset |
Location: The Reset button can be found on the back of the camera. Procedure: Hold the Reset button until the LED alternates flashing red and green, which usually happens after 10-15 seconds. For more details about the factory reset process, see Factory reset an ADC-V522IR to its default settings. |
