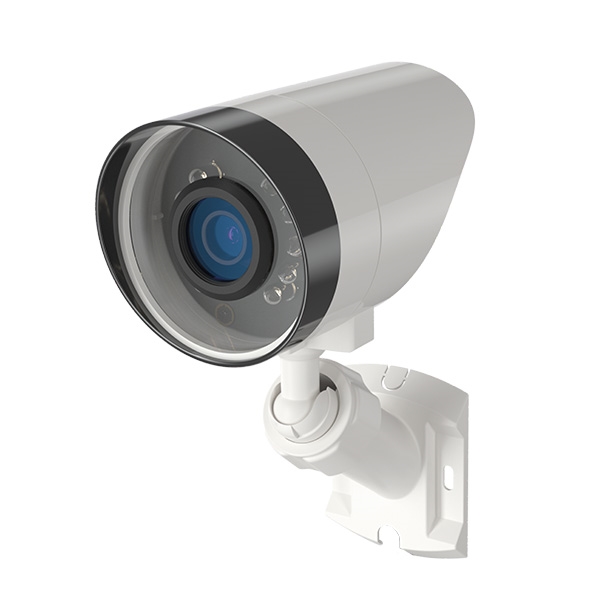

Outdoor Wireless (ADC-V722W) - Data Sheet
1080p HD video recording and excellent low-light performance make the ADC-V722W Wi-Fi Video Camera from Alarm.com a powerful video solution for any location. With an IP66 rating, the ADC-V722W is weather-resistant, dust-tight, and ideal for capturing video indoors or outdoors.
Features
- HD 1080p video
- Waterproof and Dust-Tight
- IR night vision
- Wide dynamic range (WDR)
Included accessories
- Power Adapter (10 feet)
- Wi-Fi Video camera
- Quick Installation Guide
- Mounting hardware
- Video Analytics, Video Motion Detection, and sensor-triggered clips saved to the cloud
Specifications
|
Maximum resolution |
1920x1080 |
|---|---|
|
Recording compression |
H.264, MPEG-4 |
|
Image sensor |
1/2.9" CMOS, 2.12 MP, 1920x1080 |
|
Lens |
4.0 mm, F2.1 |
|
Angle of view |
88° |
|
Low-light sensitivity |
0 lux with IR |
|
IR range |
Up to 12 meters (~40 feet) |
|
Image adjustments |
Flip, brightness, contrast, saturation, sharpness, exposure |
|
Video motion detection |
3 windows, adjustable sensitivity and threshold |
|
Wireless connectivity |
802.11 b/g/n/ac, 2.4 & 5 GHz |
|
Ethernet connection |
No |
|
Simultaneous viewers |
10 |
|
Operating temperature |
-20°C – 50°C (-4°F – 122°F) |
|
Operating humidity |
20%-100% (non-condensing) RH |
|
Max power consumption |
12 V DC, 5 W |
|
Dimensions (WxH) |
2.4” x 4.4” |
|
Ingress Protection |
IP66 |
| I/O Triggered Video Recording | For more information, see Outdoor Wireless - (ADC-V722W) Digital Input Trigger Guide. |
Note: For information about frame rate (FPS), see What is the frame rate for video?.
Network requirements
| Minimum bandwidth |
0.5 Mbps For more information, see What are the internet service and bandwidth requirements for Alarm.com video devices?. |
|---|
LED guide
