Outdoor Wireless (ADC-V721W) - Data Sheet

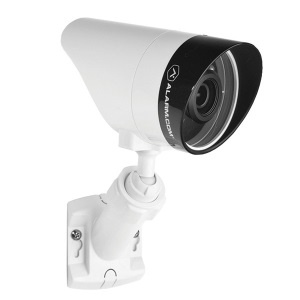

The ADC-V721W is a wireless outdoor IP night vision camera designed specifically to work with the Alarm.com hosted video service. It provides a professional surveillance solution. HD 720P live and recorded video are available to customers through web-enabled computers, cell phone web browsers, and using our free downloadable apps compatible with all Alarm.com enabled mobile devices. This camera has been designed to see at a distance of over 40 feet in the dark (black and white) while still delivering true daytime colors thanks to the mechanical IR cut filter. Plus, wireless set-up is a breeze with push button wireless set-up using either wireless access point mode or the WPS button.
Included Accessories
- Power Adapter (8 feet)
- Input/output connecters
- Wall screws
Specifications
| Live resolution options | 1280x960, 800x600, 640x480, 320x240, 176x144 |
|---|---|
| Recording resolution options | 1280x800, 600x400, 300x200 |
| Live quality | High, medium, and low compression options |
| Recording quality | High and medium compression options |
| Recording compression | H.264, MPEG-4 |
| Image sensor | 1/4” CMOS, 1280x800 |
| Iris | Fixed Iris, F1.8 |
| Focal Length | F=3.6mm |
| Field of view | 62º (horizontal), 38º (vertical) |
| Low-light sensitivity | 0 lux with IR on |
| IR LED illumination | 40 Feet (12 meters) |
| Weatherproofing | IP-66, with UV protection |
| Image adjustments | Brightness, Contrast, Saturation, Sharpness, Exposure |
| Video motion detection | 3 windows, adjustable sensitivity and threshold |
| Digital input trigger | Yes |
| I/O Triggered Video Recording | For more information, see Outdoor Wireless - (ADC-V721W) Digital Input Trigger Guide. |
| Password authentication | "Digest” authentication |
| Wi-Fi |
802.11 b/g/n 2.4 GHz wireless protocols (WPA2 / WPA / WEP / None) |
| Simultaneous viewers | 10 |
| Privacy Button | No |
| Operation temperature | 32° ~ 104° F (0°C ~ +40°C) |
| Operating humidity | 20% ~ 80% RH |
| Max power consumption | 12V DC, 5W |
| Dimensions (LxWxH) | 2.76", 1.65", 3.83" |
| Weight | 4.2 oz. |
Note: For information about frame rate (FPS), see What is the frame rate for video?.
Network requirements
| Minimum bandwidth |
0.25 Mbps For more information, see What are the internet service and bandwidth requirements for Alarm.com video devices?. |
|---|
LED Guide
| LED Status | Description | |
|---|---|---|
| Install | All off | Power off |
| Solid Red | Power on, system booting | |
| Green blink every second | Local network connection with local IP address | |
| Solid Green | Full internet connection with Alarm.com IP | |
| Blinking Blue | WPS learn-in mode. To toggle, hold the WPS button until LED indicates WPS LED state (~3 seconds) | |
| Blinking White | Wi-Fi Access point mode. To toggle, hold the WPS button until LED indicates access point mode LED state (~6 seconds) | |
| Trouble Conditions | Solid Red | No local or Internet connection |
| Factory Reset | Red blink every 0.15 second + Green blink every 0.15 second | Restoring factory default settings. To toggle, hold the WPS button until LED indicates factory reset LED state (~15 seconds) |
