Indoor/Outdoor Dome (ADC-VC826)
Preview Box

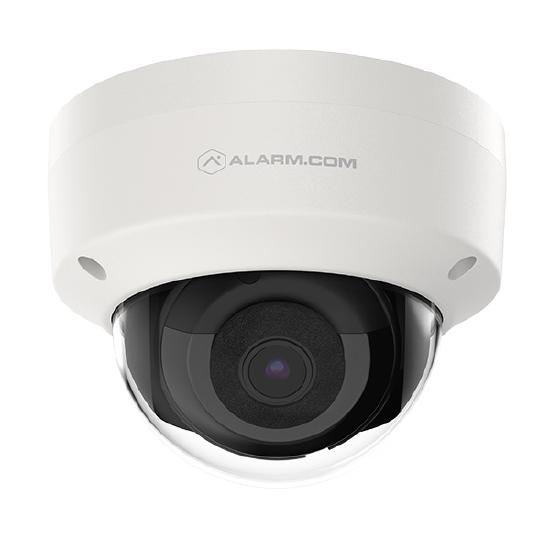

| Device image |  |
|---|---|
| Live view resolution | 1920x1080, 1280x720, 640x360 |
| Field of view | 108° |
| Night vision |
0 lux with IR, up to ~95 feet (30 meters) |
| Enrollment methods |
Ethernet For enrollment instructions, see Indoor/Outdoor Dome (ADC-VC826) - Installation Guide. |
| Ethernet compatibility |
10/100 Mbps RJ-45 Ethernet port Compatible with PoE |
| Wi-Fi compatibility | Incompatible with Wi-Fi |
| Video Motion Detection |
Compatible For Video Motion Detection (VMD) setup instructions, see Configure Video Motion Detection (VMD) settings for a video device. |
| Video Analytics |
Video Analytics 1.0 on firmware version 5.4.5.190317+ Incompatible with Business Activity Analytics (BAA) For Video Analytics setup instructions, see Configure a Video Analytics rule. |
| Onboard Recording | Incompatible |
| Two-Way Audio | Incompatible |
| Factory Reset |
Location: The Reset button is on the main circuit board. Procedure:
For more details about the factory reset process, see Factory reset an ADC-VC826 to its default settings. |
Data sheets
Installation guides
User guides
- Factory reset an ADC-VC826 to its default settingsResetting a device to its factory default settings removes all of its existing programming and memory. Most devices must be removed from the account and re-enrolled after a factory reset.
- Configure a Video Analytics ruleAlarm.com Video Analytics continuously scans a property and sends a notification when a person, vehicle, or animal is identified. Advanced detection rules enhance perimeter security by sending alerts when someone is coming or going, or even loitering on the property.
Frequently asked questions
- How does the ADC-VC826 connect to the internet?The ADC-VC826 supports Ethernet connectivity and Power over Ethernet (PoE), allowing power and network access through a single Ethernet cable when used with a PoE-compatible device. Without PoE, the camera requires a separate AC adapter for power and an Ethernet cable for data. The ADC-VC826 does not support Wi-Fi directly and is a hardwired-only camera, but it can work with an ADC-W110 PoE bridge to communicate over Wi-Fi.
General information
- Commercial video internet bandwidth guidelines
- Connect a video device using Power-Over-Ethernet (PoE)
- How does Power-over-Ethernet (PoE) work with Alarm.com video devices?Power-over-Ethernet devices can provide and receive power through an Ethernet cable's free wires. Video devices capable of using Power-over-Ethernet only require one cable for power and data. Alarm.com Power-over-Ethernet video devices use the IEEE 802.3af standard, which is an active Power-over-Ethernet standard.
- How well can Alarm.com cameras see in the dark? (night vision, infrared)
- Update the firmware of a video deviceThe firmware of an Alarm.com video device can be updated remotely using the Partner Portal, MobileTech app, or Customer website. Keeping the firmware up-to-date ensures that the device will be compatible with new features.
- What is the maximum distance of Power-over-Ethernet (POE)?
