1080p Indoor Wi-Fi Camera (ADC-V523/523X)
Quick Facts

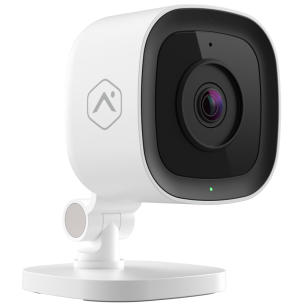

| Device image |  |
|---|---|
| Live view resolution | 1920 x 1080 |
| Field of view | 117º |
| Night vision |
0 lux with IR, up to ~15 feet (4.6 meters) |
| Enrollment methods |
AP mode, WPS mode, Ethernet For enrollment instructions, see 1080p Indoor Wi-Fi Camera (ADC-V523/523X) - Quick Start Guide. |
| Ethernet compatibility |
Has 10/100Mbps RJ-45 Ethernet port |
| Wi-Fi compatibility | Compatible with 802.11 b/g/n, 2.4 & 5 GHz Wi-Fi connections |
| Video Motion Detection |
Compatible For Video Motion Detection (VMD) setup instructions, see Configure Video Motion Detection (VMD) settings for a video device. |
| Video Analytics |
Compatible For Video Analytics setup instructions, see Configure a Video Analytics rule. |
| Onboard Recording |
Compatible on firmware version 0.6.1.151+ For Onboard Recording setup instructions, see Onboard Recording with Smart View for video devices. |
| Perimeter Guard |
Compatible For more information, see Perimeter Guard™ for video devices. |
| Two-Way Audio |
Compatible with Two-Way Audio For Two-Way Audio setup instructions, see Two-Way Audio Installation and User Guide. |
| Factory Reset |
Procedure: Press and hold Location: For more information about the factory reset process, see Factory reset an ADC-V523/523X to its default settings. |
until the LED is flashing Green and Red (about 15 seconds), then release the button.Note: There is no functional difference between the V523/V523X and their features. V523X replaced V523 anywhere the cameras' model/SKU numbers appear.
Overviews
- 1080p Indoor Wi-Fi Camera (ADC-V523/523X) OverviewThe 1080p Indoor Wi-Fi Camera (ADC-V523) provides an enhanced indoor video experience with High Dynamic Range, which delivers sharper video quality without images getting washed out by bright light sources.
Installation guides
Videos
- ADC-V523/523X Installation - Placing the cameraBefore installing the ADC‑V523 or ADC‑V523X camera, it is important to choose an optimal location that provides a clear view of the areas that need to be monitored.
How-to troubleshooting guides
Frequently asked questions
- Can the ADC-V523/523X be used outdoors?The ADC-V523/523X is meant for indoor use only and is not IP rated.
- Does the ADC-V523/523X have high dynamic range (HDR)?Yes. Video devices with High dynamic range (HDR) can show more detail in the dark shadows and bright highlights of an image
- Does the ADC-V523/523X need to be calibrated to use Video Analytics?Does the ADC-V523/523X need to be calibrated to use Video Analytics?
General information
- Can a video device use both an Onboard (SD card) and SVR recording schedule simultaneously?Yes. A video device can record continuously to an Onboard recording schedule and SVR recording schedule at the same time.
- How much Onboard Recording footage can be stored on a microSD card?
- How well can Alarm.com cameras see in the dark? (night vision, infrared)
- Onboard Recording (SD card) with Smart View for video devices
- Perimeter Guard™ for video devicesStop intruders in their tracks with Perimeter Guard™ proactive defense. Perimeter Guard™ uses Alarm.com's advanced Video Analytics to sound an alert and flash the camera's status LED when unwanted visitors are detected.
- Video Analytics best practices
- View continuously recorded video using Smart ViewStream footage is recorded using a Stream Video Recorder (SVR) or an Onboard Recording rule at any time using Smart View. Playback of continuously recorded video is available using the Customer website or Customer app. This article details how to view, navigate and download clips from the Smart View timeline.
- When does live or saved video contain audio?
- Which video devices support Video Analytics?Cameras that are compatible with Video Analytics can detect and record people/animals/vehicles that pass through or linger in areas of interest.
