Indoor Fixed (ADC-V520)

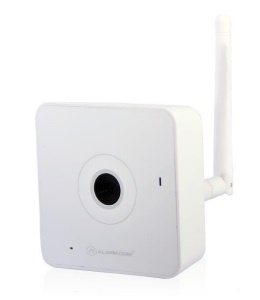

Device image
Live view resolution	1280x800, 640x400, 320x200, 176x144
Field of view	47° (horizontal) 31° (vertical)
Night vision	No night vision. Low light sensitivity: 0.5 lux at 1/5 sec.
Enrollment methods	WPS Ethernet For more information about enrollment, see Indoor Fixed (ADC-V520) - Installation Guide.
Ethernet compatibility	Has 10/100Mbps RJ-45 Ethernet port. Not compatible with PoE.
Wi-Fi compatibility	Compatible with 802.11 b/g/n, 2.4 GHz connections.
Recording features	Video Motion Detection: All hardware and firmware versions. For more information about how to set up a Video Motion Detection recording rule, see Configure Video Motion Detection (VMD) settings for a video device. Video Analytics: Not compatible.
Two-Way Audio	Not compatible with Two-Way Audio.
Factory reset	Location: The Reset button can be found in the pinhole on the back bottom left corner of the device. Procedure: Hold the Reset button until LED rapidly flashes red and green, which usually happens after 15 seconds. For more details about the factory reset process, see Factory reset an ADC-V520 to its default settings.

Indoor Fixed (ADC-V520) - Installation GuideInstall an ADC-V520 indoor fixed camera by connecting power, pairing it to the network with WPS or Ethernet, adding it to the Alarm.com account, and then mounting it in its final location.
