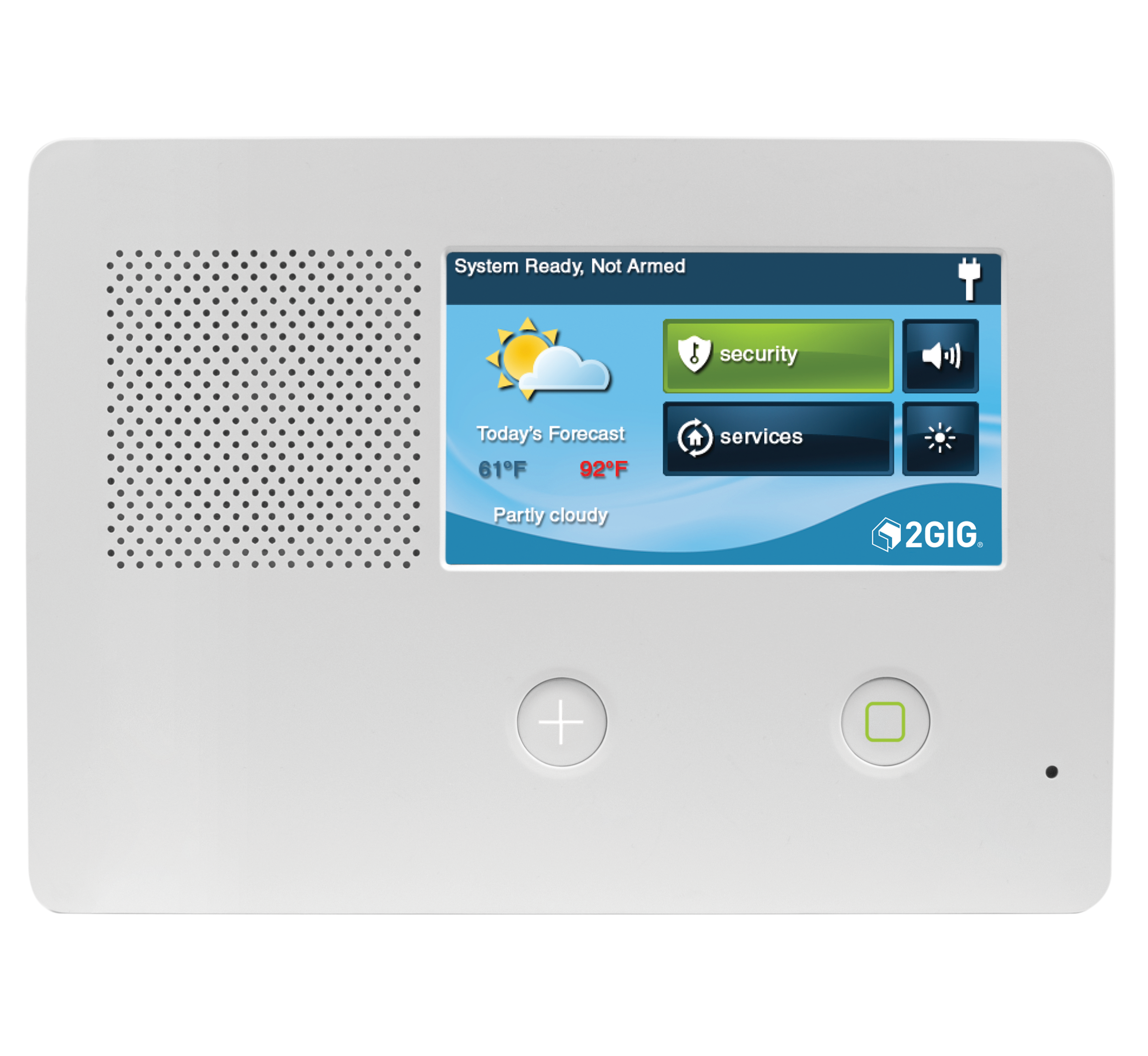

2GIG GC2e

• Panel firmware version begins at 1.21 and is compatible with most 4G/LTE module versions
• Verizon or AT&T LTE-Quectel-EC21 modules require panel firmware version 1.24+

1. Tap Security.
2. Tap Menu.
3. Tap Toolbox.
4. Enter the master or installer code.
5. Tap to scroll to Toolbox (3 of 3).
6. Tap Cell Phone Test.
7. Enter the master or installer code again. The panel begins the communication test, which may take up to 2 minutes.
8. Upon successful completion, the panel displays The cell phone is working correctly. The test completed successfully. Tap Ok.

The serial number can be found in programming and is also labeled IMEI or ADC on the cellular module.

For more information, see Find the serial number for a 2GIG GC2e.

64 Wireless Zones, 1 Wired Zone, 4 keypads, 8 Keyfobs

64 user codes

Supports 4-digit user codes. On firmware 1.23+, 6-digit user codes are supported and programmable in Q98.

* Incompatible

Supports up to 3 Image Sensors

Panel or module requirements

• Panel firmware version 1.23+
• The 2GIG XCVR5e Transceiver adapter for the Image Sensor must be installed in the panel

Compatible Image Sensor versions

• ADC-IS-300-LP

Compatible. No additional hardware required.

Major features:

• Local Network Rediscovery: All panel versions
• Node Neighbors: All panel versions
• Link Quality Indicators: All panel versions
• Remote Add/Delete: All panel versions
• Network Wide Inclusion: All panel versions
• Z-Wave Plus: All panel versions
• Z-Wave Security 2 (S2): All panel versions
• Alarm.com Smart Thermostat (ADC-T3000) compatibility: Panel versions 1.22+
