Smart Water Valve (ADC-SWV100)

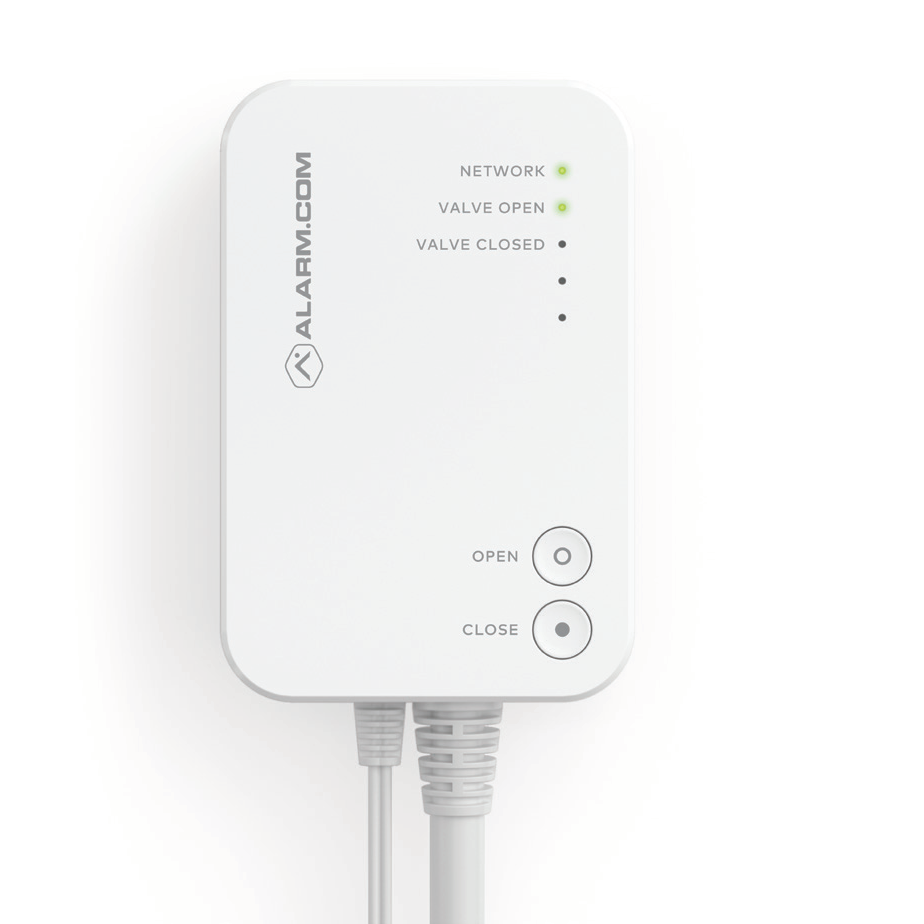

Device Image
Manufacturer	Alarm.com
Power Requirements	100-240 VAC (50/60 Hz)
Environment	Indoor
Operating Temperature	14°F to 185°F (-10°C to 85°C)
Z-Wave Security 2 (S2)	Yes
Z-Wave SmartStart	No
Z-Wave Enrollment	As an S2 device: For information about this process, see Add an S2-encrypted Z-Wave device. As an S0 device: Note: For best results, it is recommended to bring the Z-Wave controller into the area where the Smart Water Valve is installed. Put the Z-Wave controller into add mode. For panel-specific information, refer to the relevant guides in Panels. Press the Network button on the side of the Smart Water Valve control unit to begin the add process. The network light on the control unit will begin flashing. After the Smart Water Valve is successfully added, the network light on the Smart Water Valve will turn solid. If the network light is not illuminated after the add process, repeat steps 1 and 2.

Smart Water Valve (ADC-SWV100) - Data SheetThe Smart Water Valve provides peace of mind that your home is protected against water damage. Set up rules to automatically shut off your water when a water sensor detects a leak. Use the Customer app to turn your water on or off remotely.

Smart Water Valve (ADC-SWV100) - Installation GuideThe Smart Water Valve installation guide explains how to safely install, power, test, and troubleshoot a Z-Wave water shutoff valve. It covers installation requirements such as indoor dry placement, downstream positioning from the main shut-off valve, proper fittings for compatible pipe sizes, and avoiding fire suppression systems.
