Smart Water Valve (ADC-SWV100) - Data Sheet
The Smart Water Valve provides peace of mind that your home is protected against water damage. Set up rules to automatically shut off your water when a water sensor detects a leak. Use the Alarm.com app to turn your water on or off remotely.
Features:
- Open / close water valve remotely
- Automatically shut off the water when paired with a water sensor
- Modular design
- Z-Wave Plus communication
- Z-Wave S2 security protocol
Included accessories:

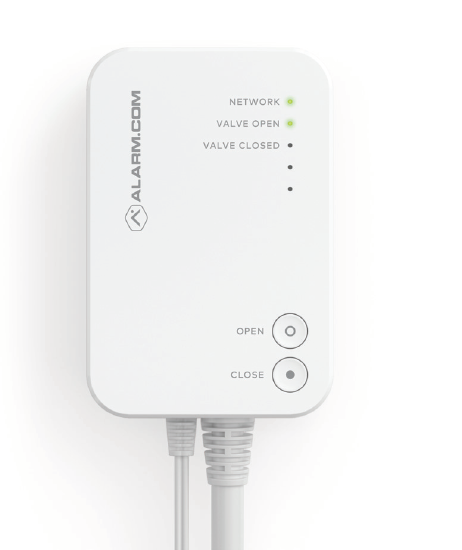

- ADC-SWV100 Control Unit
- Brass valve
- Actuator
- Mounting plate
- Drywall anchors & screws (x2)
- Cable ties (x3)
- Power adapter
- User guide
Specifications:
| Power | 100-240 VAC (50/60 Hz) |
|---|---|
| Operating Temperature | 14°F to 185°F (-10°C to 85°C) |
| Communication | Z-Wave Plus |
| Restrictions | For indoor use only |
| Valve |
Size: 1" Threads: Female NPT Potability: Conforms to NSF/ANSI 61 and 372 standards for potability |
| Control Unit Dimensions | 2.75 x 4.0 x 1.25” (6.99 x 10.2 x 3.18 cm) |
| Actuator and Valve Dimensions | 2.0 x 4.5 x 3.75” (5.08 x 11.43 x 9.53 cm) |
| Maximum Compatible Pipe Size | 1.25" (3.175 cm) |
| Power Supply Cable Length | 19.7’ (6 m) |
| Plumbing Certifications |
ICC-ES-PMG (compliance with NSF 61 and NSF 372) Massachusetts Accepted Plumbing Products Registry |
