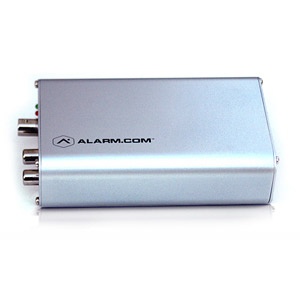

1 Channel Video Server (ADC-VS1) - Data Sheet
The ADC-VS1 is an analog-to-IP video server designed specifically to work with the Alarm.com hosted video service. This provides a professional surveillance solution without the complexity of traditional CCTV systems. The ADC-VS1 allows new or existing analog CCTV cameras to be monitored on an Alarm.com video account.
High-quality Live and Recorded video are available to customers through web-enabled computers, cell phone web browsers, or free downloadable apps for iPhone and Android devices.
Included accessories
- Quick install guide
- Power adapter
- I/O connector
Optional accessories
- ADC-VPE (9’ DC power extension cable)
Features
| Live resolution options | 704x480, 352x240, 176x120 |
|---|---|
| Recording resolution options | 704x480, 352x240 |
| Live quality | High, medium and low compression options |
|
Recording quality |
High and medium compression options |
| Recording compression | MPEG-4 |
| Image sensor | Depends on analog camera |
| Iris | Depends on analog camera |
| Field of view | Depends on analog camera |
| Low-light sensitivity | Depends on analog camera |
| Image adjustments | Brightness, Contrast, Saturation, Sharpness |
| Video motion detection | 3 windows, adjustable sensitivity and threshold |
| Digital input trigger | Yes |
| Ethernet connection | 10/100 Mbps RJ-45 |
| Password authentication | “Digest” authentication |
| Simultaneous viewers | 5 |
| Operation temperature | 32° ~ 122° F ( 0 ° ~ 50 ° C) |
| Operating humidity | 20% ~ 80% RH |
| Max power consumption | 12V DC @ 330 mA |
| Dimensions (DxWxH) | 4.8" x 3.0" x 1.4" |
| Weight | 7.0 oz. |
For more information about frame rate (FPS), see What is the frame rate for video?.
Network requirements
| Minimum bandwidth |
0.25 Mbps per device For more information, see What are the internet service and bandwidth requirements for Alarm.com video devices?. |
|---|
