Stream Video Recorder (SVR)

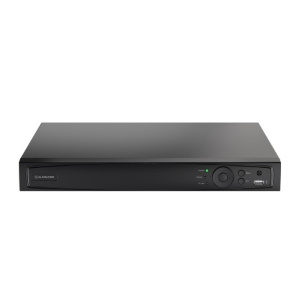

Device image
Live view resolution	N/A
Field of view	N/A
Night vision	N/A
Enrollment methods	Ethernet For more information about enrollment, see Commercial Stream Video Recorder (ADC-CSVR126) - Installation Guide.
Ethernet compatibility	RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface. Not compatible with PoE.
Wi-Fi compatibility	Not compatible with Wi-Fi.
Recording features	Local 24/7 recording. Recording channels: Up to 16 cameras. Storage: 2 SATA interfaces, up to 8 TB per interface. To calculate the total footage that can be stored at a time, see How much video can be stored on Alarm.com SVRs?.
Two-Way Audio	N/A
Factory Reset	Location: Local user interface on the System page. Procedure: Click Menu. Click System. Click Factory Reset. Enter the password (if applicable). Click Next. For more information about the factory reset procedure, see Factory reset an ADC-CSVR126 to its default settings.

Device image
Live view resolution	N/A
Field of view	N/A
Night vision	N/A
Enrollment methods	Ethernet For more information about enrollment, see Stream Video Recorder (ADC-SVR100) - Installation Guide.
Ethernet compatibility	Has 10Base-T/100BaseTX (RJ45) Ethernet port. Not compatible with PoE.
Wi-Fi compatibility	Not compatible with Wi-Fi.
Recording features	24/7 local recording for connected cameras. Recording channels: Up to eight cameras. Storage: 2 bays (up to 2TB of storage each), SATA II (standard).
Two-Way Audio	N/A
Factory Reset	Location: The Reset button can be found in the pinhole labeled Reset in the back bottom left corner. Procedure: Hold the Reset button until the LED rapidly flashes red and green, which usually happens after 15 seconds. For more information about the reset process, see Factory reset an ADC-SVR100 to its default settings.

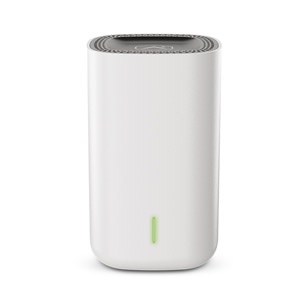

Device image
Live view resolution	N/A
Field of view	N/A
Night vision	N/A
Enrollment methods	Ethernet For more information about enrollment, see Stream Video Recorder (ADC-SVR122) - Installation Guide.
Ethernet compatibility	Has 10Base-T/100BaseTX (RJ45) Ethernet port. Not compatible with PoE.
Wi-Fi compatibility	Not compatible with Wi-Fi.
Recording features	24/7 local recording for connected cameras. Recording Channels: Up to eight cameras. Storage: 1 Bay (500GB, 1TB, or 2TB of storage). To calculate the total footage that can be stored at a time, see How much video can be stored on Alarm.com SVRs?.
Two-Way Audio	N/A
Factory Reset	Location: Reset button is on the back of the SVR. Procedure: Push the Reset button and release when the status LED flashes Green and Red (about 15 seconds). For more details about the reset process, see Factory reset an ADC-SVR122 to its default settings.
