Pro Series Commercial Camera Mounting Plates (ADC-VACC-MNT110/130) - Data Sheet
Overview
The ADC-VACC-MNT110 and ADC-VACC-MNT130 camera mounting plates enable easy mounting of Alarm.com Pro Series cameras to third-party camera mounting bases. This is especially useful in takeovers where these mounting bases are already installed, saving time and money during installation.
These camera mounting plates are optional and are not required when mounting a Pro Series camera directly to a wall or ceiling.
ADC-VACC-MNT110
VC827P mounted to CB110 base
VC728PF mounted to CB110 base
ADC-VACC-MNT130
VC847PF mounted to CBM base

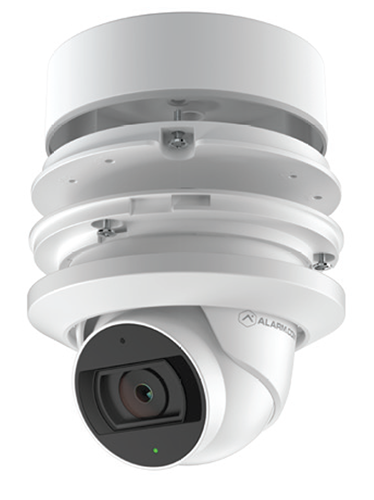

VC838PF mounted to CB130T base
Included Accessories
ADC-VACC-MNT110 Mounting Plate
- M3x10 truss head screws (x3) for mounting adapter to CB110
- M4x10 pan head screws (x3) for mounting adapter to AB110, PC110
- M5x10 pan head screws (x3) for attaching VC728PF, V724, V730
- M4x16 cheese head screws (x3) for attaching VC827P
- ST4.8 self-tapping screws and anchors (x3) for attaching to wall/ceiling
- Cable plug for weather proofing
ADC-VACC-MNT130 Mounting Plate
- M4x10 pan head screws (x3) for mounting adapter to CB130T, CBM, ABM
- M5x10 pan head screws (x3) for attaching VC838PF
- M4x22 cheese head screws (x3) for attaching VC847PF
- ST4.8 self-tapping screws and anchors (x3) for attaching to wall/ceiling
- Cable plug for weather proofing
Features
- Adapts Alarm.com cameras to third-party mounting bases
- Compatible with a variety of third-party bases
- Minimize installation costs and time
Specifications
ADC-VACC-MNT110
| Camera compatibility | VC827P, VC727P, VC728PF, V724, V730 |
|---|---|
| Mounting base compatibility |
|
| Dimensions (D x H) | 4.4 x 0.4” (11.1 x 1.0 cm) |
| Weight | 3.3 oz (94 g) |
ADC-VACC-MNT130
| Camera compatibility | VC847PF, VC838PF |
|---|---|
| Mounting base compatibility |
|
| Dimensions (D x H) | 5.0 x 0.5” (12.8 x 1.2 cm), Flange diameter of 5.4” (13.8 cm) |
| Weight | 5.2 oz (147 g) |
