LP1502 Door Controller and Power Kit (ADC-AC-LP1502-PSE) - Quick Wiring Diagram

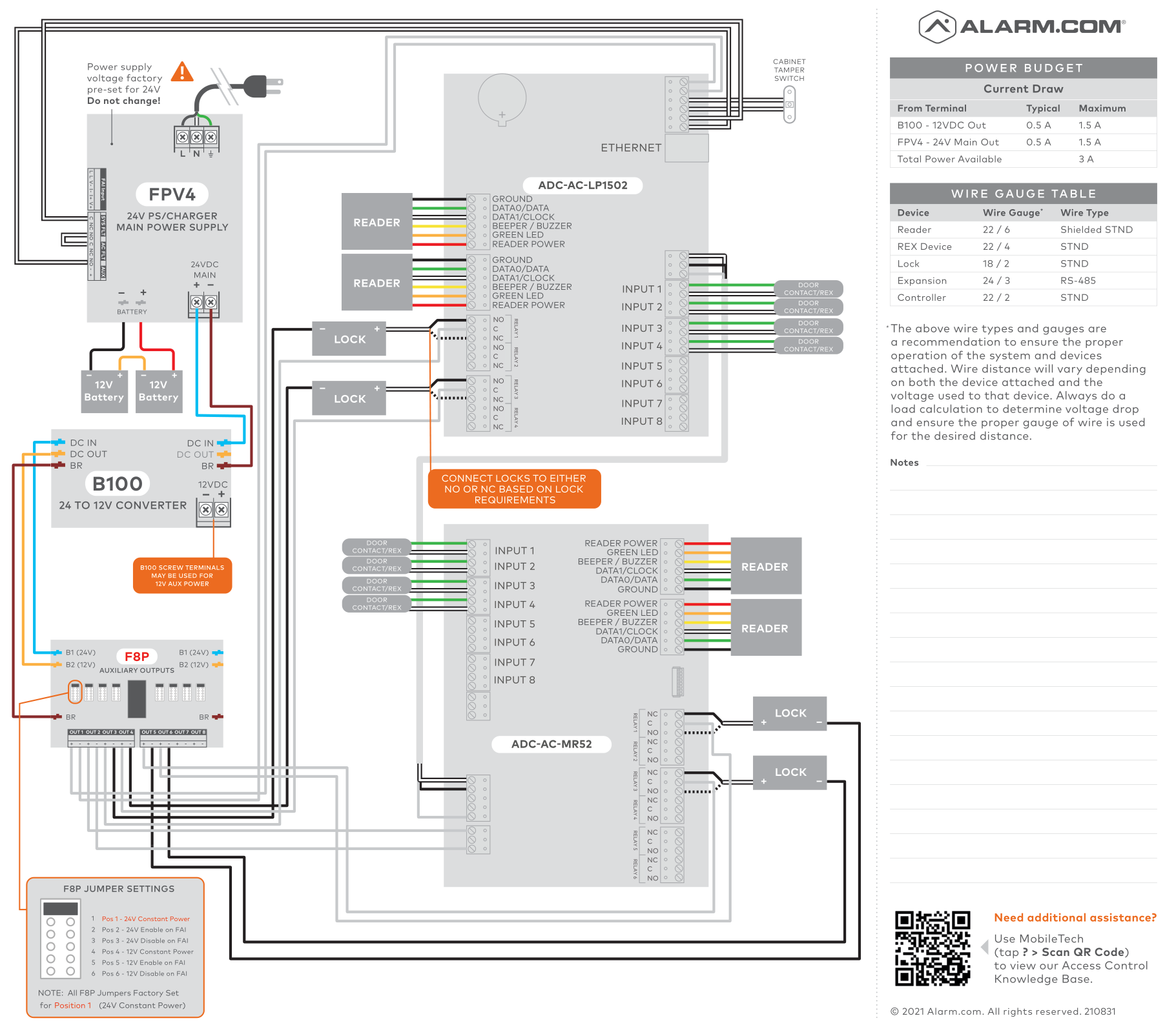

The wiring diagram is provided on the inside door of the ADC-AC-LP1502-PSE kit. For more detailed wiring instructions, see LP1502 Door Controller (ADC-AC-LP1502) - Installation Guide.
Note: The following diagram is the newest version as of August 31, 2021. The wiring may differ from the sticker found inside ADC-AC-LP1502-PSE kits.
