LUX KONOzw Smart Hub Thermostat (KN-ZW-WH1-B04)

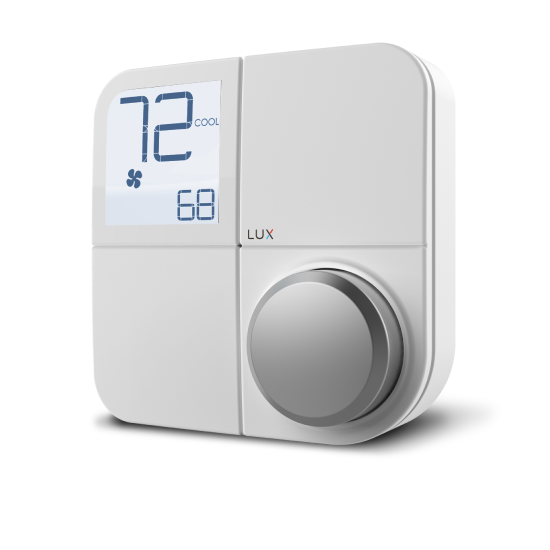

Device Image
Manufacturer	LUX Products
Required firmware version	1.1.9+
Power	4 AA batteries, C-wire, or LUX Power Bridge (sold separately)
Z-Wave Security 2 (S2)	Yes
Local Thermostat Schedules	No
Alarm.com Auto Mode	Yes
Enroll Button Location	Initiate inclusion mode on the security panel using the instructions provided with it. In HOME screen, press the knob once to enter the menu settings. Rotate the knob to select , then press the knob to enter the inclusion/exclusion menu. In the inclusion/exclusion menu, select ADD and press the knob to confirm. The device will begin the adding process. Note: If the security panel supports S2 (authenticated) security mode, it will ask the user to provide the DSK code of the device to complete the inclusion process. The DSK code is printed on the product label.
Reset Option	Caution: Please use this procedure only when the network primary controller is missing or otherwise inoperable. Enter the installer setting menu and select the installer option #99, then press the knob to confirm. All the device parameters will be restored to factory default. The Z-Wave network setting will also be erased. User must perform the device inclusion with their hub/gateway again to re-establish the network.
