Leviton In-Wall Switch (DZ15S)

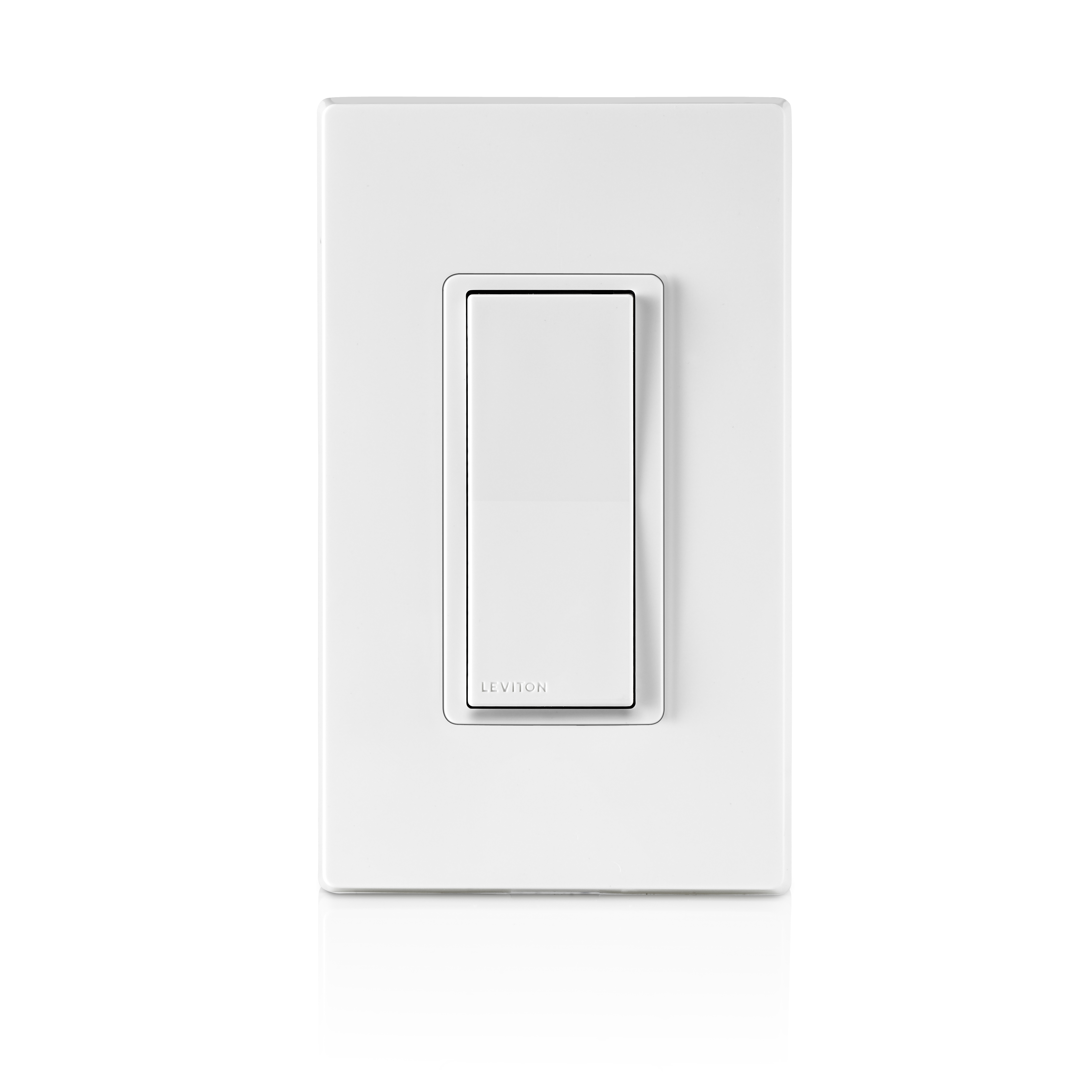

Device Image
Manufacturer	Leviton
Power Requirements	120VAC
Maximum Load	Supports LED and CFL technologies up to 600 Watts along with support for legacy incandescent lighting loads up to 1800 Watts
Dimming	Yes; achieved using DD0SR-1 Coordinating Remote (no LED indicator) or DD0SR-DL Matching Remote (with LED indicator)
Z-Wave Security 2 (S2)	No
Z-Wave SmartStart	No
Z-Wave Enrollment	Enter programming mode by holding the top of the paddle for 7 seconds. The Locator LED will blink amber. Follow directions in the Z-Wave controller to enter learn mode. Tap the top of the paddle one time. The Locator LED will quickly flash green. The Z-Wave controller will begin to pair with the Leviton switch. Upon successful addition to the network, the LED will turn off and then blink green 3 times. If the adding process is not successful, the LED will flash red 3 times. Note: This device also supports NWI (Network Wide Inclusion). Use a single-tap of the top of the paddle when the panel is in Add Mode to utilize NWI.
