Add the Alarm.com widget for Android
Android widgets are shortcuts to actions on apps that can be triggered at the touch of a button.
Android widget requirements
Usage of Android widgets require certain device and account requirements:
| Hardware | The customer must have an Alarm.com system compatible with Scenes. For more information, see Scenes. |
|---|---|
| Android OS version | The Android widgets feature requires a phone or tablet running Android OS 4.0+ |
| Alarm.com app version | Version 3.7+ |
| Seamless login | Customers must stay logged into the app (with the Keep me logged in option checked upon login). If not, customers will be asked to log in when attempting to trigger a scene. |
Additional information
- Android widgets can currently only trigger scenes. Any system that does not support Scenes also does not support Android widgets.
- The customer can set up one widget per Scene.
- The customer can set up one Scene command per widget.
- In the Android app version 3.7, widgets were sized 2x1, meaning they occupied two horizontal slots and one vertical slot in the home screen grid and could not be adjusted without a custom app launcher. In app versions 3.8+, widgets are sized to be 1x1 by default, and they can be expanded horizontally as far as the mobile device will allow.
- In some Android phone models and various operating systems, the Android widget is named Scenes rather than Alarm.com. When the customer searches for available widgets, the customer should search for both Alarm.com and Scenes.
- Due to a platform limitation, there is no indicator that a command is not completing successfully due to a lack of cellular or Wi-Fi data.
To add the Alarm.com widget for Android:
- Navigate to the Android phone's Widgets menu.

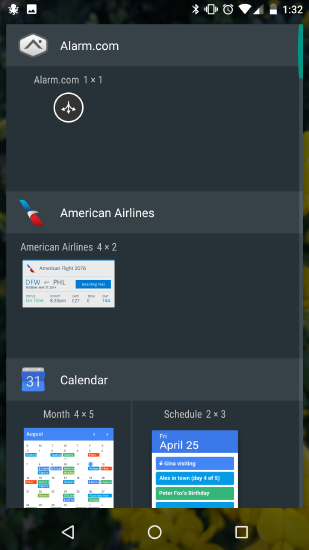

Note: Accessing the Widgets menu can be a different process for different Android devices. Sometimes it will be an option from the Apps menu. Other times it will be accessed by pressing and holding the home screen to get the Home Screen menu to appear. - Tap to select the Alarm.com option by pressing and holding the Alarm.com option or custom app name (e.g., Guardian or AMP) that appears.

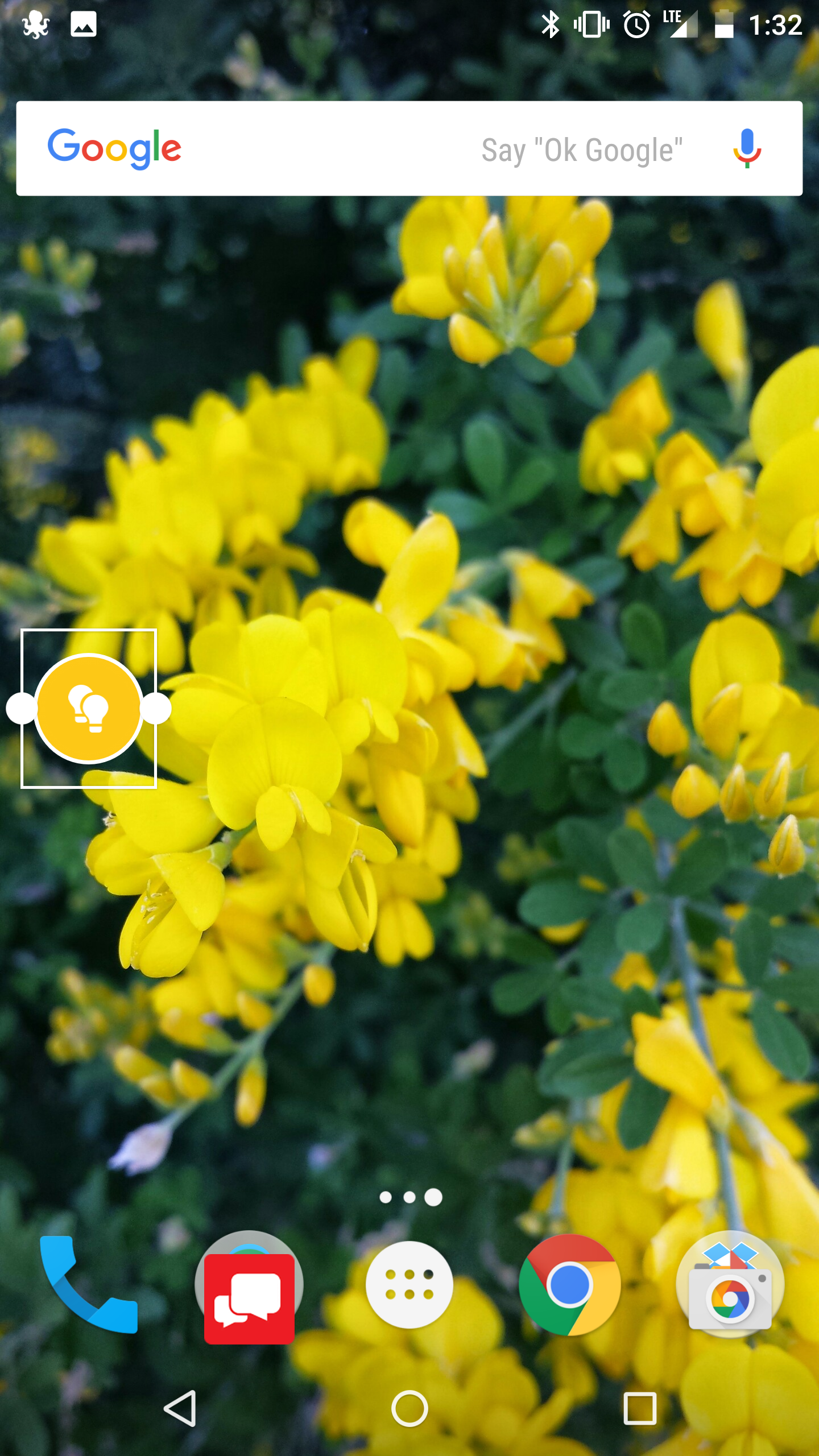

- Once the Alarm.com widget is selected, drag and drop the widget to the preferred location.

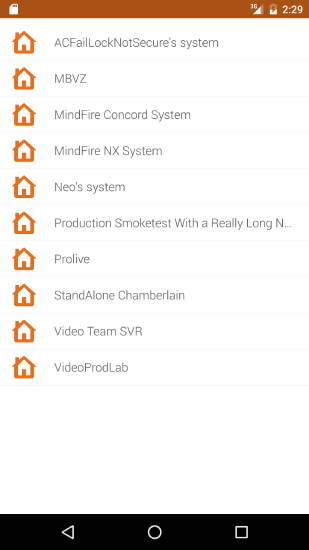

- If Linked Systems is set up on the customer's login, there will be a menu that asks you to select which system's scene this widget will trigger. If the customer's login only has access to one system, proceed to the next step.

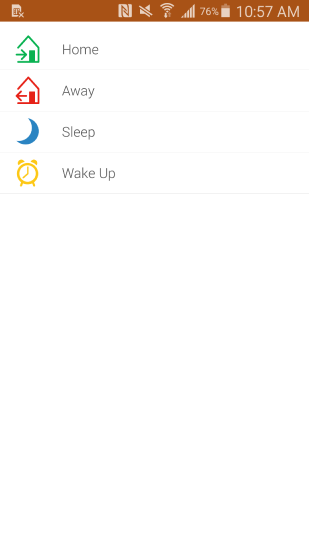

- Tap to select which scene this widget will trigger. These scenes must already exist, so if a customer would like to add a widget for something they have not programmed yet, they will first have to create the scene. For more information on how to create a scene, see Create/edit a Scene.

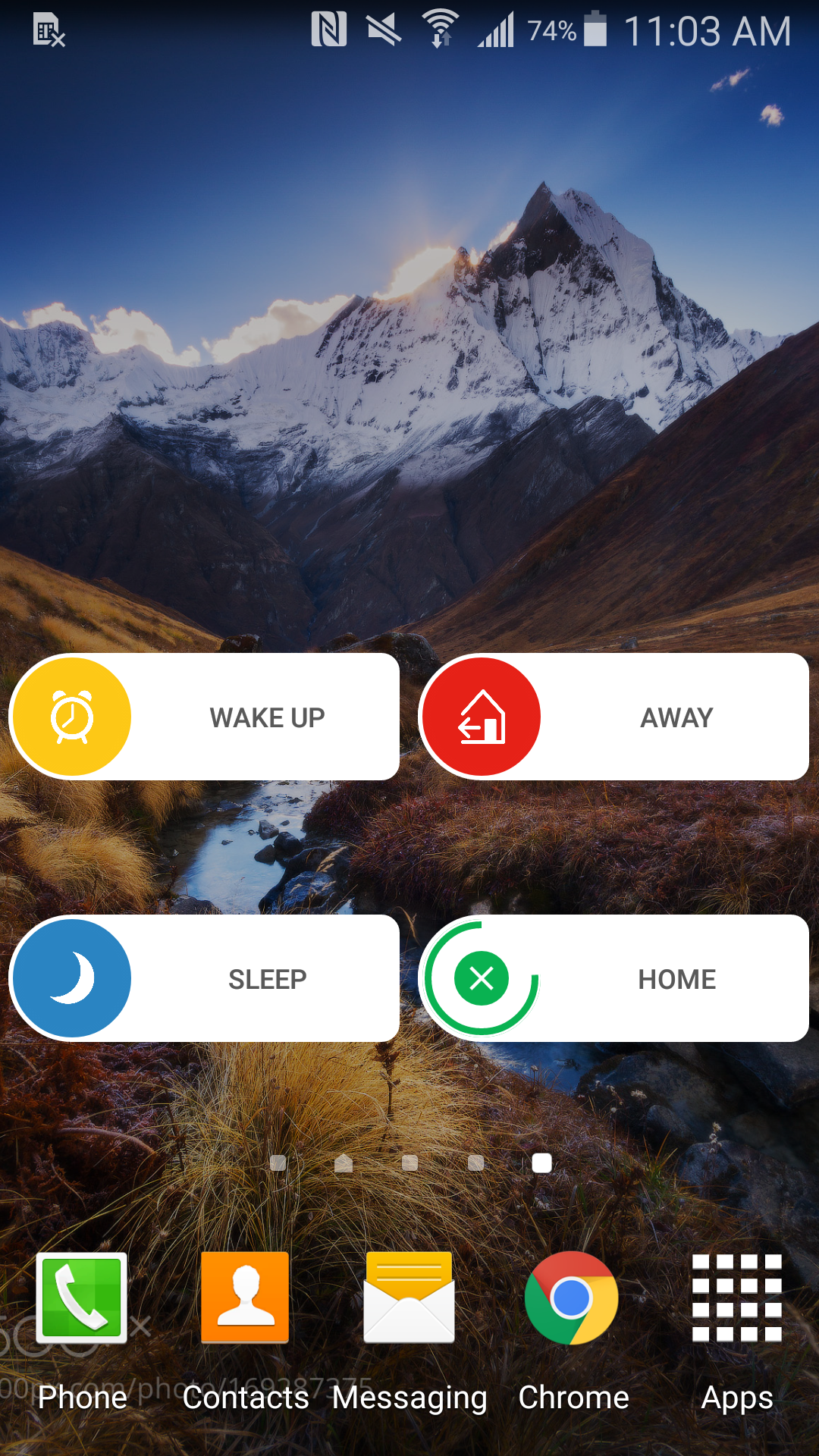

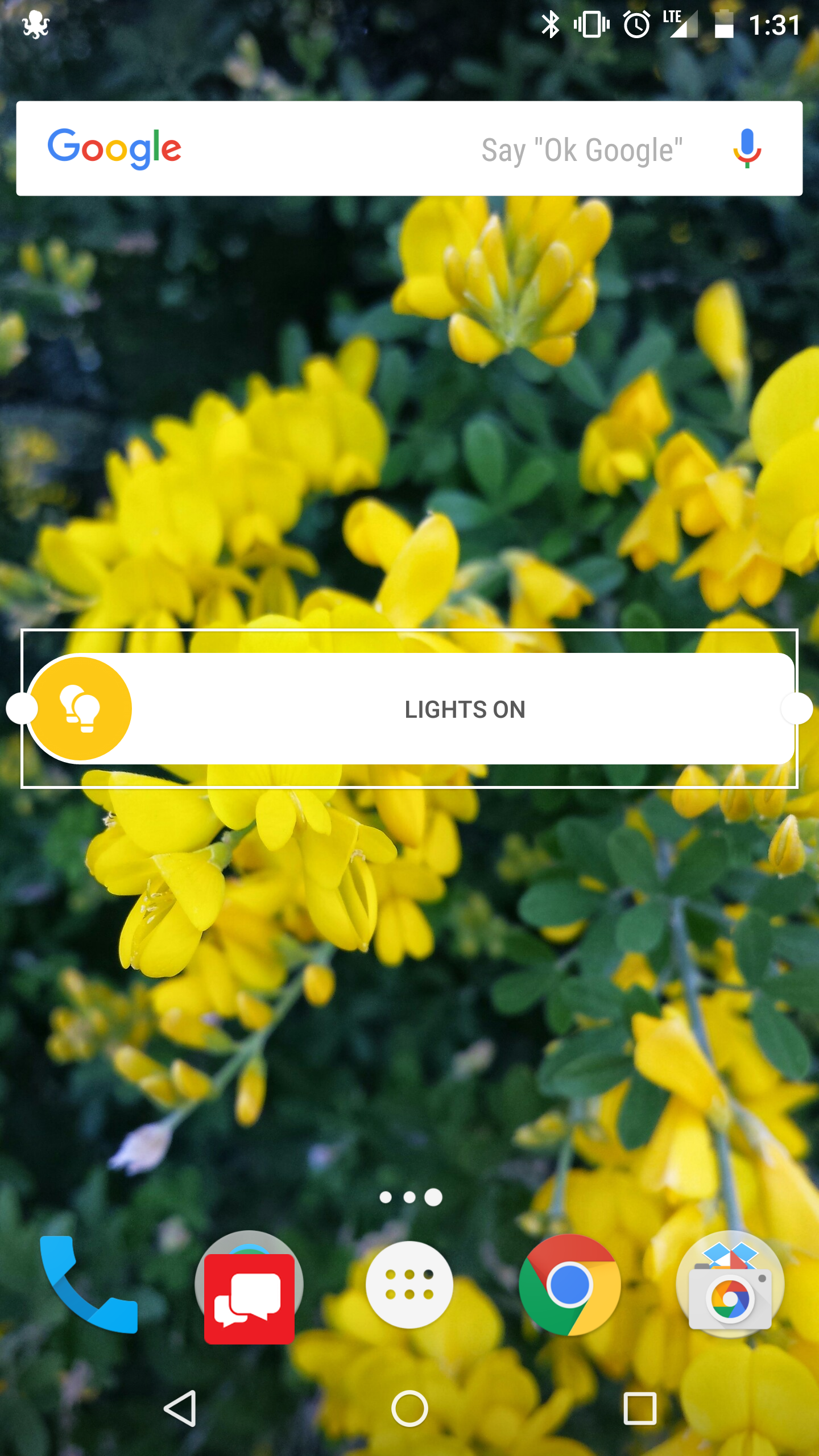

- After selecting the scene, it will appear as a widget on the home screen in the place previously selected. The widget can be moved or expanded by pressing and holding the widget until small dots appear to allow for expansion. Drag and drop the dot to expand the widget size.
- Tap the widget to trigger a scene.
Note: An X will appear in the center of the circle, and a timer bar will appear and disappear after three seconds. If X is tapped within the 3-second time window, the scene triggering will be canceled.
Scenes are edited from the Scenes sections of the Alarm.com customer website or Alarm.com app, so any adjustments desired to be made to widgets will need either a scene adjustment or a new scene with a corresponding new widget.
