Aeotec Heavy Duty Smart Switch (ZW078) - Wiring Guide

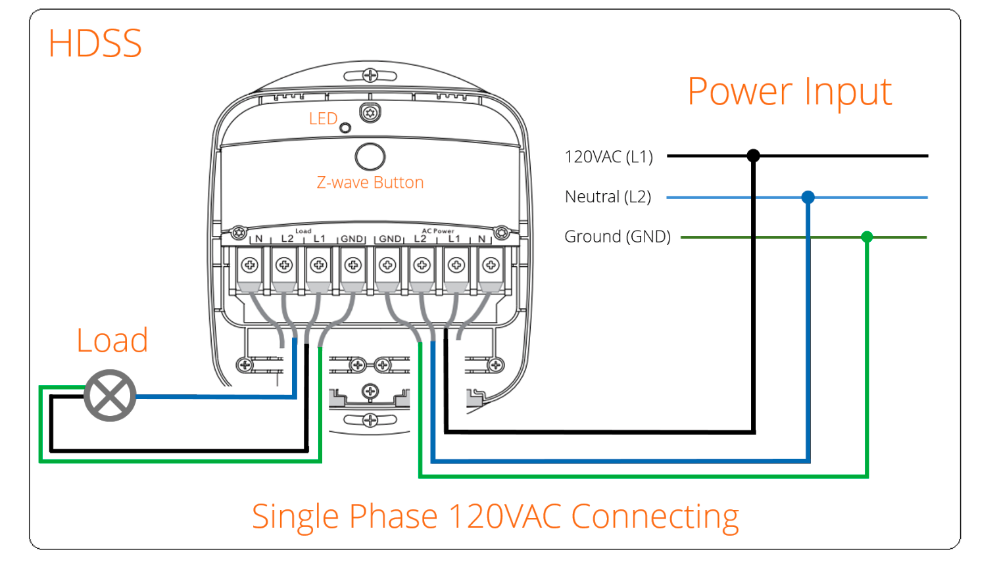

The following diagrams illustrate how to wire a Heavy Duty Smart Switch (HDSS) using either 120VAC or 240VAC. Devices may be wired directly into the HDSS or the HDSS may be wired with an extension cord as an independent unit.
