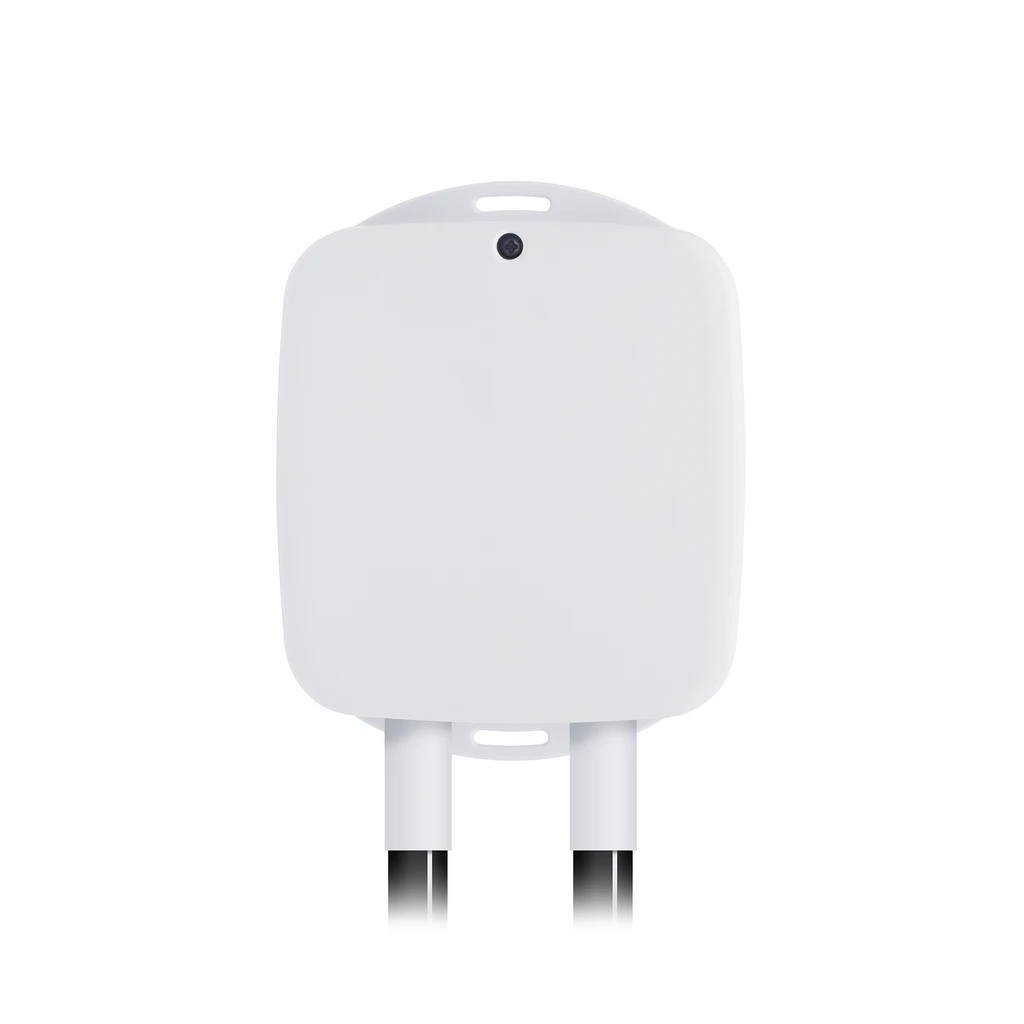

Aeotec Heavy Duty Smart Switch (ZW078)

2 phase (Split phase - US)

240 VAC, 50/60Hz;

Maximum 9600 Watts 40A Resistor;

240 VAC 5HP AC Motor;

1 phase only (Split phase - US)

120 VAC, 50/60Hz;

Maximum 4800 Watts 40A Resistor;

120 VAC 5HP AC Motor;

1 phase (EU/AU)

240 VAC, 50/60Hz;

Maximum 9600 Watts 40A Resistor;

240 VAC 5HP AC Motor;

41°F to 104°F (5°C to 40°C)

As a SmartStart device:

For information about SmartStart compatibility and the enrollment process, see Add or remove a Z-Wave SmartStart-enabled device.

As an S2 device:

For information about this process, see Add an S2-encrypted Z-Wave device.

As an S0 device:

1. Remove the battery tab from the sensor.
2. Place the Z-Wave controller into Add Mode.
3. Press the button on the sensor. The LED will turn solid green once successfully enrolled.
