Outdoor (ADC-V700X) - Data Sheet

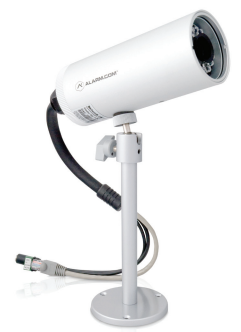

The ADC-V700X is a weatherproof, day/night outdoor IP camera designed specifically to work with the Alarm.com hosted video service, which provides a professional surveillance solution without the complexity of traditional CCTV systems. High-quality live and recorded video are available to customers through web-enabled computers, cell phone web browsers, or using free downloadable apps for iPhone and Android devices.
Included accessories
- Quick install guide
- Power adapter
- Female/female Ethernet coupler
- Waterproof connector
- Silica gel
- Mounting stand and screws Optional Extra Accessories
- ADC-VPE (9’ DC power extension cable)
- ADC-POE-INJ (Power-Over-Ethernet injector)
Specifications
| Live resolution options | 640x480, 320x240, 176x144 |
|---|---|
| Recording resolution options | 640x480, 320x240 |
| Live quality | High, medium, and low compression options |
| Recording quality | High and medium compression options |
| Recording compression | MPEG-4 |
| Image sensor | 1/4” CMOS, progressive scan |
| Iris | Fixed, f = 4.0mm, F1.8 |
| Field of view | 56 (H) x 42 (V) |
| Low-light sensitivity | 0 lux @ F1.8 (IR LED on) |
| IR illumination | LED x 12 (850 nm), 33 ft range |
| Image adjustments | Brightness, Contrast, Saturation, Sharpness, Exposure |
| Video motion detection | 3 windows, adjustable sensitivity and threshold |
| Digital input trigger | Yes |
| Ethernet connection | 10/100 Mbps RJ-45 |
| Password authentication | “Digest” authentication |
| Simultaneous viewers | 5 |
| IP rating | IP66 |
| Operation temperature | ~4° ~ 122° F ( -20 ° ~ 50 ° C) |
| Operating humidity | 90% RH |
| Max power consumption | 12V DC or 24VAC @ 500mA |
| 802.3af PoE compliant | Yes |
| Dimensions (LxWxH) | 5.9" x 2.3" x 2.3" |
| Weight | 22.2 oz. |
Note: For information about frame rate (FPS), see What is the frame rate for video?.
Network requirements
| Minimum bandwidth |
0.25 Mbps For more information, see What are the internet service and bandwidth requirements for Alarm.com video devices?. |
|---|
