Alarm.com Wireless Video Doorbell (ADC-VDB780B) - Data Sheet
Overview

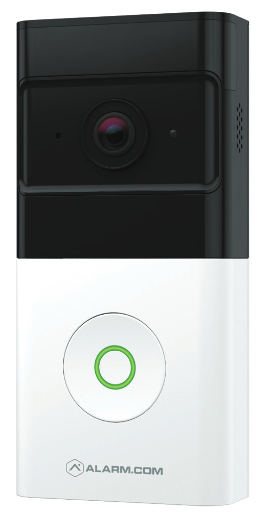

The Alarm.com Wireless Video Doorbell (ADC-VDB780B) is a battery-powered doorbell camera that features HD video, Video Analytics for rapid people detection, Two-Way Audio, a wide field of view, and a rechargeable battery.
This completely wireless video doorbell gives customers the flexibility to choose the perfect installation location without depending on the existing wiring or chime. The ADC-VDB780B must be connected over Wi-Fi to the Alarm.com Smart Chime (ADC-W115C), Smart Gateway (ADC-SG130), IQ panel 4, IQ panel 4 Hub, IQ 4 NS panel, or the IQ Wi-Fi 6 access point.
For more information, see What devices support the ADC-VDB780B?.
Key features
- Completely wireless installation
- Rechargeable (micro USB) battery pack
- Optimized for battery life that is expected to last up to six months
- Advanced motion detection provides increased awareness with timely alerts
- Two-Way Audio through the mobile app
- Installation flexibility for optimal viewing
- 160º horizontal FOV
- Full HD 1080p recording
- Wide Dynamic Range (WDR)
- Wi-Fi connection to the Alarm.com Smart Chime (ADC-W115C), Alarm.com Smart Gateway(ADC-SG130), IQ panel 4, IQ panel 4 HUb, IQ 4 NS, or Qolsys IQ WiFi 6 (all sold separately).
Included accessories
- Charging cable
- Mounting plate
- Mounting screws and anchors
- Installation guide
- 10º tilt wedge
Optional accessories
- ADC-VDB780B Wedge Mount Kit that includes a 15º Tilt, a 15º Pan, and a 30º Pan Wedge Mounts and Screwdriver (sold separately as ADC-VDBA-780B-WMK; can be used to optimize the captured field of view)
Specifications
| Recording compression | H.264 |
|---|---|
| Ingress protection | IP66 |
| Max resolution | 1920x1080 |
| Image sensor | 2.12 MP - 1080p, Sony IMX323 ABRcontrol support and MJPEG |
| Lens/angle of view | 160° horizontal, 90° vertical, 175° diagonal |
| Low-light sensitivity | 0.5 lux with IR LED off |
| IR range | Up to 15 feet (5 meters) |
| Image adjustments | Flip, brightness, contrast, saturation, sharpness, exposure |
| Wi-Fi connectivity | 802.11 b/g/n, 2.4 GHz |
| Operating and storage temperatures | -4°F to 122°F (-20°C to 50°C) |
| Operating humidity | 20% to 100% (non-condensing) |
| Dimensions | (W x L x D) 2.5 x 5.3 x 1.2”(64 x 134 x 30 mm); mounting bracket adds 0.2” (6 mm) to depth |
| Motion sensor | Passive infrared sensor |
| Battery pack capacity | 9540mAh nominal capacity |
| Charging requirement | 5V/1.5A charger |
| Charging time | Up to 7 hours |
| Speaker | 1W, 8Ω speaker |
| Microphone | Single, omni-directional, analog, >-40dBV/Pa |
For Internet service and bandwidth requirements, see What are the internet service and bandwidth requirements for Alarm.com video devices?.
For information about frame rate (FPS), see the customer article What is the frame rate for video?.
LED Guide
- Top LED
- Button LED
.png?revision=2)
Button light guide
Note: The ADC-VDB780B is a battery-powered device, and the LEDs do not stay lit to help conserve power. For more information, see Can the ADC-VDB780B's LED stay illuminated?.
Operational States
| Mode | Description | Button LED behavior |
|---|---|---|
| Standby or off |
The camera is in standby mode (normal operation) or the battery is drained and requires recharging. |
Off
|
| Local connection |
The camera has a local network connection. |
Solid green
|
| No local connection |
The camera does not have a local network connection. |
Solid red
|
| Low battery |
The camera's battery is low and requires a recharge. |
Alternating red and blue
|
| Connecting to network |
The camera is powered on and connecting to the network. |
Blinking red
|
| WPS mode |
The camera is in WPS pairing mode. To enter this mode, press and hold the button for 30-45 seconds. |
Blinking blue
|
| AP mode |
The camera is in AP pairing mode. To enter this mode, press and hold the button for 46-60 seconds. |
Blinking white
|
| Power cycle |
The camera is being power cycled. To enter this mode, press and hold the button for 61-75 seconds. |
Blinking yellow
|
| Factory reset |
The camera resetting to factory default. To enter this mode, press and hold the button for 76-180 seconds. |
Alternating red and green
|
| Firmware upgrade |
The camera's firmware is being upgraded. |
Blinking yellow rapidly
|
Charging States
| Mode description | Top LED Behavior | Button LED behavior |
|---|---|---|
|
Charging The battery pack is plugged in and charging. |
Solid orange
|
On button press Solid green =
Solid yellow =
Alternating red and blue = <20% charged
|
|
Fully charged The battery pack is fully charged. |
Solid green
|
On button press, solid green
|
|
Failure charging The battery pack stopped charging because the device was plugged in too long. This may signal that there is an issue with your battery pack. Remove the charging cabled and re-attempt charging after an hour. If you see the same behavior, please contact your provider. |
Alternating orange and green
|
Alternating red and white
|
|
Operational temperature range for charging exceeded The battery pack's internal temperature is either too hot or too cold. Please charge the battery pack in a room-temperature environment. |
Solid green or solid orange
|
Alternating red and yellow
or Alternating red and white
|
