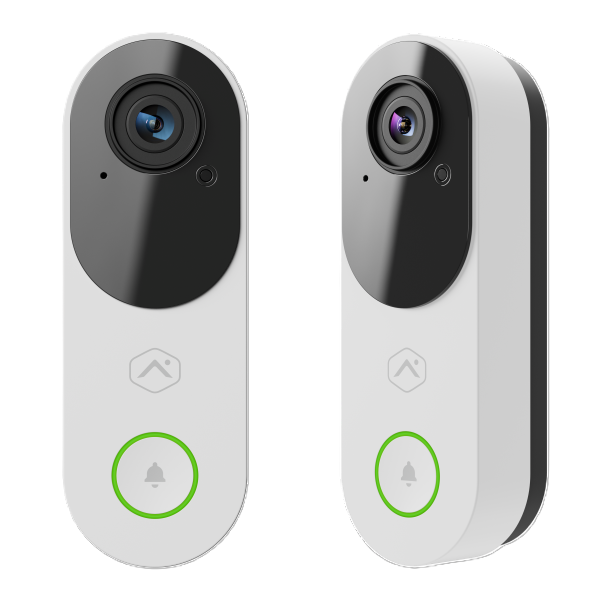

Alarm.com Premium Video Doorbell Camera (ADC-VDB775) - Data Sheet
Overview
In addition to classic capabilities like Perimeter Guard™ and Package Alerts, the ADC-VDB775 introduces directional tripwires, plus vehicle and animal detection, to our video doorbell camera product line. Vivid 4 MP video and 150° vertical and horizontal Field of View deliver increased awareness, while upgrades like Bluetooth® enrollment significantly reduce installation time. Additionally, a wide range of operating temperatures (-58° to 120°F (-50° to 50°C)) makes it ideal for a diverse range of installation climates.
Features
- 4 MP Video with high dynamic range
- Video Analytics with People, Animal, and Vehicle detection
- Package detection
- Battery-less design
- 3 simultaneous Video Analytics rules
- Directional tripwires for Video Analytics rules
- Full duplex Two-Way Audio
- Perimeter Guard™ and Manually Triggered Warning Sounds for proactive deterrence
- Dual antenna (2x2 MIMO) Wi-Fi for flexible range (2.4 GHz and 5 GHz)
Included accessories
- Alarm.com Premium Video Doorbell Camera (ADC-VDB775)
- ADC-VDB775 wallplate
- Mechanical Chime Dongle (ADC-VDBA-MCD)
- Wall anchors (x2) and ST3.5 x 22mm screws (x2)
- Installation card with scannable QR code
Additional accessories
The following accessories are sold separately on the Partner Portal. For more information about how to order, see Order equipment from the Partner Portal.
| Accessory name | Accessory SKU |
|---|---|
| Alarm.com VDB775 Wedge Mount Kit | ADC-VDBA-775-WMK |
| Alarm.com VDB775 Power Module | ADC-VDBA-775-PM |
| Alarm.com Video Doorbell Wall Spacer | ADC-VDBA-WS |
Specifications
| Recording compression | H.264 |
|---|---|
| Ingress protection | IP65 |
| Max resolution | 2048 x 2048 |
| Image sensor | 1/3.11" |
| Lens/angle of view | 150° vertical, 150° horizontal |
| Low-light sensitivity | 0 lux with IR |
| IR range | Up to 15 feet (5 m) |
| Wireless connectivity | 802.11 b/g/n/ac/ax, 2.4 GHz & 5 GHz |
| Operating temperature | -58°F to 122°F (-50°C to 50°C) |
| Operating humidity | <95% (non-condensing) RH |
| Dimensions (W x L x D) | 1.81 x 5.26 x 1.34" (46 x 133.5 x 34 mm) |
Power requirements
| AC transformer | 16-24 VAC, 10-40 VA |
|---|---|
| DC transformer |
Wired chime
No wired chime
|
LED status guide
| LED pattern | Description |
|---|---|
|
Off
|
Power off |
|
Solid green
|
Connected to Alarm.com |
|
Blinking green
|
Local network connection |
|
Blinking red
|
Power on, camera booting |
|
Solid red
|
No local or internet connection |
|
Blinking white
|
Wi-Fi Access Point mode (press and hold the reset button for 30-35 seconds) |
|
Blinking blue
|
WPS mode (press and hold button for 35-40 seconds) |
|
Blinking yellow
|
Power cycling (press and hold button for 40-45 seconds) |
|
Blinking red and green
|
Camera resetting to factory default (press and hold button for 45-50 seconds) |
|
Blinking blue and green
|
Firmware updating |
