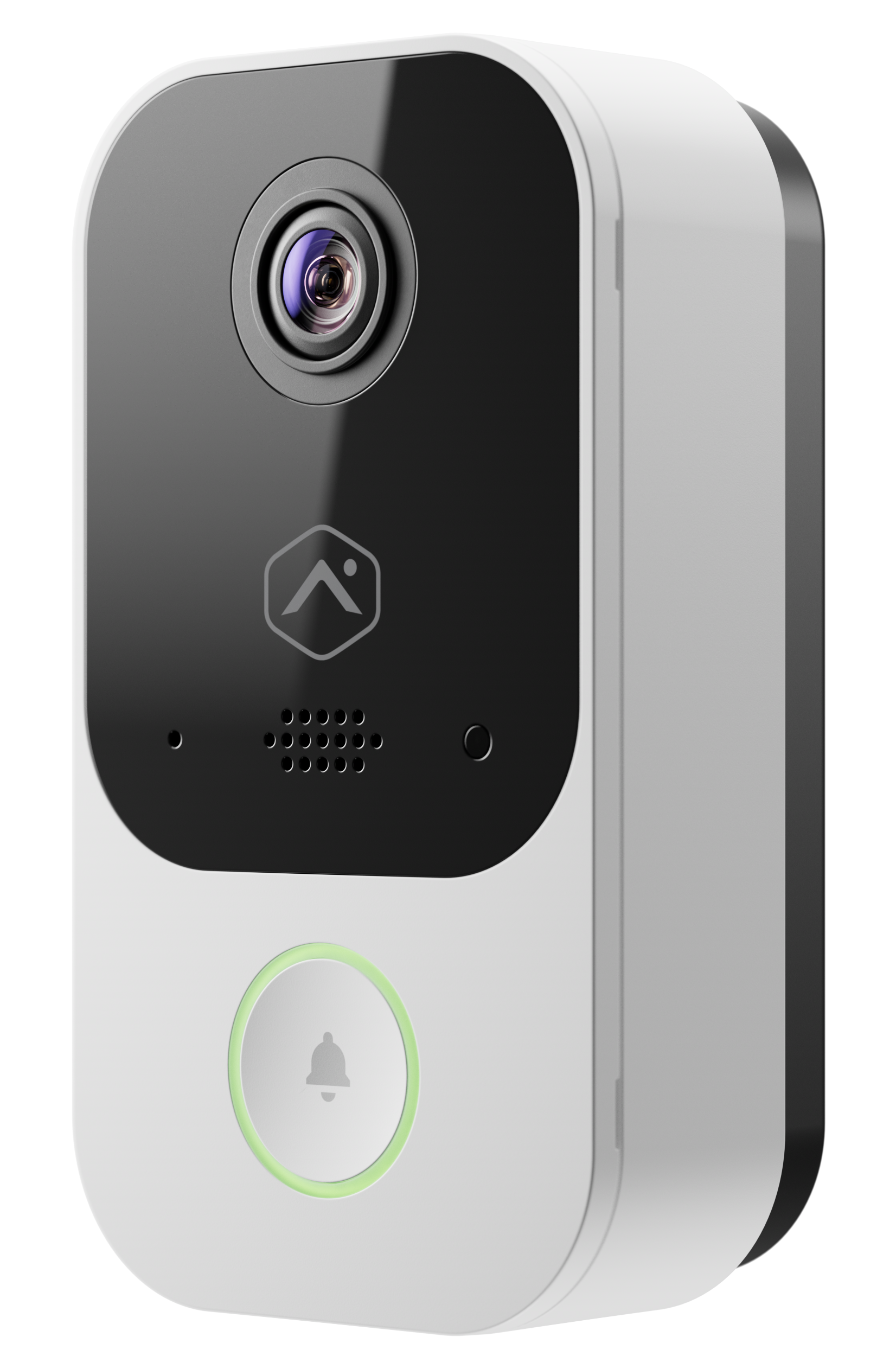

Alarm.com PoE Video Door Station (ADC-VDB755P) - Data Sheet
Overview
Introducing the latest addition to Alarm.com's family of video doorbells — the ADC-VDB755P. The ADC-VDB755P is Alarm.com's first doorbell camera with Power over Ethernet (PoE) capabilities, allowing for a reliable network connection and power supply. This doorbell offers crystal clear 2MP picture and an expansive 150° horizontal and 150° vertical Field of View so customers can see and do more at the front door. Alarm.com's powerful People Detection and crisp Two-Way Audio help reduce false notifications while bringing increased awareness and allowing users to communicate with visitors. With support for SVR Recording your customers can locally record encrypted video and view footage from anywhere. Plus - a wide range of operating temperatures increases install flexibility, making this a great choice in any environment.
Features
- Power over Ethernet
- Expansive 150° horizontal and 150° vertical Field of View ensures customers get a full picture of what's happening at their front door
- Video Analytics with rapid People Detection for faster, more relevant alerts and fewer false notifications
- Full HD resolution, High Dynamic Range (HDR), and infrared night vision
- Two-Way Audio
- Compatible with the Alarm.com Smart Chime (W115C)
- 2MP live video and saved clip viewing via the Alarm.com app and Alarm.com customer website
- Compatible with the Alarm.com CSVRs and SVR210 for continuous recording
Included accessories
- ADC-VDB755P Video Door Station
- Wall anchors (x2) & screws (x2)
Specifications
| Recording compression | H.264 |
|---|---|
| Max resolution | 1440 x 1440 |
| Lens/angle of view | 150° horizontal, 150° vertical |
| Low-light sensitivity | 0 lux with IR |
| IR range | Up to 15 feet (5 meters) |
| Image adjustments | Flip, brightness, contrast, saturation, sharpness, exposure |
| Wireless connectivity | N/A |
| Operating temperature | -58°F - 122°F (-50°C - 50°C) |
| Operating humidity | < 95% (non-condensing) RH |
| Dimensions (W x L x D) | 2.45 x 4.50 x 1.54" (62.3 x 114.2 x 39.1mm) |
| Activity Detection | Advanced Video Analytics for People Detection |
| Audio | Two-Way Audio (Full Duplex) |
| Compliance | FCC, IC, RCM, CE Class B, UL, RoHS, WEEE, Compliant with Section 889 of the NDAA* |
*Accurate as of 8/12/24. Visit Alarm.com > Legal > NDAA Statement for the most current information.
Requirements
| Power | PoE 802.3af |
|---|---|
| Ethernet connection | 10/100Mbps RJ-45 |
LED status guide
| LED pattern | Description |
|---|---|
|
Off
|
Power off |
|
Blinking yellow
|
Camera power cycling |
|
Solid red
|
No local or internet connection |
|
Blinking red
|
Power on, camera booting |
|
Blinking green
|
Local network connection |
|
Solid green
|
Connected to Alarm.com |
|
Alternating red and green
|
Camera resetting to factory default (press and hold button for 45-50s) |
|
Alternating yellow and white
|
Change the chime type to mechanical (press and hold button for 60-65s)
|
|
Alternating blue and white
|
Change the chime type to digital (press and hold button for 60-65s)
|
