Factory reset an ADC-VS420 to its default settings
It is recommended that the device be powered on for at least 2 minutes before trying to factory reset it.
Important: If the factory reset is attempted immediately after power-up, it will not work as the device will still be rebooting. After performing a factory reset, it is strongly recommended to leave the device alone and plugged into power for 2 minutes.
| Reset procedure | Reset button location | Reset button image |
|---|---|---|

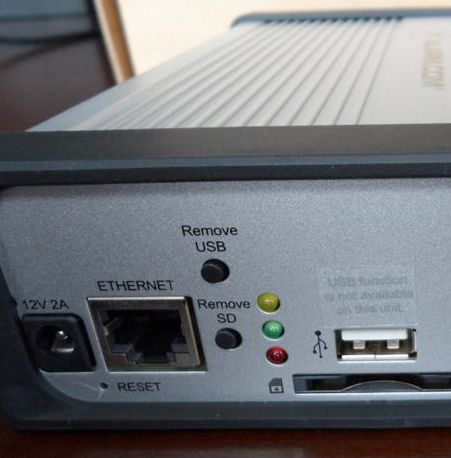

| Hold the Reset button until the LED rapidly flashes red and green, which usually happens after 15 seconds. | The Reset button can be found in the pinhole located on the back left side of the device. |  |
Important: Once a video device has been reset, it is normal for the LED to turn off momentarily. It is best to leave the video device plugged into power and undisturbed for 2 minutes after performing the factory reset.
