4MP Indoor/Outdoor Battery Spotlight Camera (ADC-V731B) - Installation Guide

  1. Last updated
  2. Save as PDF

Compatibility Notice: Alarm.com does not support third-party solar panels for use with Alarm.com cameras.

The Alarm.com Solar Panel (ADC-VACC-SP4W) and ADC-V731B camera are designed to be used together to ensure a weatherproof connection. The full suite of features and functionalities will only work correctly with the official Alarm.com Solar Panel.

Pre-Installation Checklist

There are three options for connecting the ADC-V731B to the Wi-Fi network: Bluetooth (BLE) mode, Access Point (AP) mode or Wi-Fi Protected Setup (WPS) mode. BLE mode is the recommended method to connect the camera to the network, then AP mode if BLE mode is not.

Note: Some Internet Service Providers disable the WPS feature on customer routers.

In the box

  • ADC-V731B camera
  • ADC Universal Battery Pack
  • USB-C Cable
  • Installation card
  • Wall mount
  • Wall plate
  • Wall anchors & screws (2)

Pre-Installation

The following steps should be taken prior to the installation steps:

  1. Unbox the unit. Carefully remove the device and all included components from the packaging.
  2. To remove the battery pack:
    1. Press the oval button located on the bottom of the device to release the housing.
    2. Set the back housing aside and locate the black notch at the bottom of the battery pack.
    3. Press the notch inward and slide the battery pack downward to remove it.

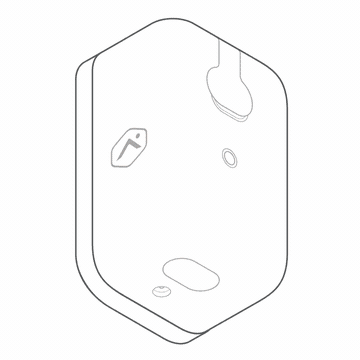

      V731B_open housing and remove battery.gif

  3. To reinsert the battery pack:
    1. With the battery pack removed, carefully peel off any protective film covering the device or components.
    2. Align the battery pack with the cradle and slide it back into place. Make sure you hear the notch click to confirm it is securely inserted.

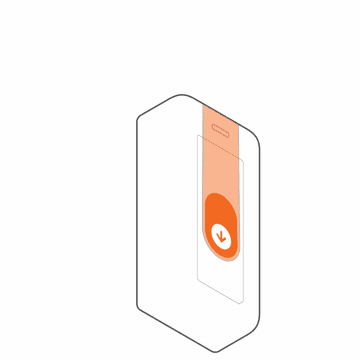

      V731B_peel protective film and reinsert battery.gif

  4. Verify the LED indicator on the front of the device goes into pairing mode (blinking white).
    1. When the device turns on, it begins blinking red to indicate the device is booting.
    2. If the device is new or has not been previously associated with a network, the LED should begin blinking white to indicate it has entered pairing mode. If the LED is blinking white, replace the rear housing by pressing it together with the camera body, and proceed to the next section of the guide.

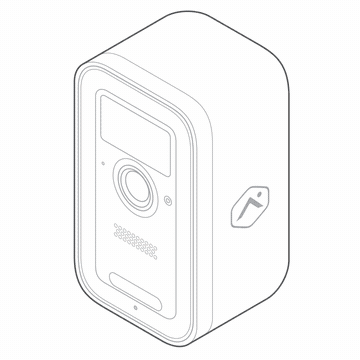

      V731B_LED pairing.gif

    3. If the LED light does not blink white, press and hold the multi-purpose button located on the side of the device (accessible once the housing is removed) for 3 seconds, or until the LED begins blinking white. Once the LED starts blinking white, release the button and proceed to the next section of the guide.

Connect the camera to the Wi-Fi network

The ADC-V731B can be connected to the Wi-Fi network using BLE mode, AP mode, or WPS mode. BLE mode is the recommended method to connect the camera to the network.

Note: An installation tutorial can also be found on the enrollment page of the Alarm.com customer website and Alarm.com app to walk through these steps.

To ensure a sufficient Wi-Fi signal, complete the following steps with the camera near its final location but prior to mounting.

BLE mode (recommended) steps

Devices can be connected via BLE mode using the Alarm.com app. Additional troubleshooting steps may be displayed during the process.

Note: This method will also enroll the device to the account as part of the process.

To ensure a sufficient Wi-Fi signal, complete the following steps with the camera near its final location but prior to mounting.

  1. Connect the camera to power. Verify the device powers on and the LED begins to blink white.
    • If it does not blink white after two minutes, press and hold the doorbell button and release when the LED begins to blink white (about 30 seconds).
  2. Log in to the Alarm.com app with a Bluetooth-enabled mobile device.
  3. Tap More.
  4. Tap Add Device.
  5. Tap Video.
  6. Scroll to find the device or use the Find Device search bar to enter the model number, and then tap to select the device to add.
  7. Enter a Device Name, then tap Next.
  8. Power on the device and verify the LED light is flashing white, then tap Next.
    • If it is not flashing white, press and hold the button until the status LED starts blinking white. This may take several seconds.
    • Tap Troubleshoot to learn more about how to get the device to that state.
  9. If Bluetooth is not enabled on your mobile device, approve the Bluetooth permission request when prompted, and then tap Next.
  10. Bring your mobile device close to the device being enrolled, then tap Scan.
  11. Allow time for your mobile device to scan for devices in the area.
  12. Select the device to set up. Verify the selected device's MAC address matches the MAC address on the device being enrolled, then tap Connect.
  13. Keep your phone near the device while it connects.
  14. Once your phone is connected to the device, tap to select the Wi-Fi network. Either:
    • Select a known network in My Wi-Fi Networks, or
    • Select a new network in Other Networks, enter the password for the Wi-Fi network, and then tap Connect.
  15. Allow a few minutes for the device to connect to the network.
  16. Once the device connects to the Wi-Fi network, the device continues to complete the install on the account. Once the installation is complete, verify the video device works properly.
AP mode steps
  1. Power on the camera. The camera’s LED will begin to blink white. If the LED is not white after two minutes, press and hold the WPS/Reset button and release when the LED begins to blink white (about 3 seconds).
  2. Connect to the camera’s Wi-Fi network. On an Internet-enabled device, connect to the Wi-Fi network ADC-V731B (XX:XX:XX) where XX:XX:XX is the last six characters of the ADC-V731B’s MAC address, which is located on the camera or on the packaging.
  3. Access the camera setup page. On the same device, open a web browser and enter http://v731binstall.com or 192.168.1.1 in the URL field. Follow the on-screen instructions to add the ADC-V731B to the Wi-Fi network. During this process, the LED will briefly turn red before blinking green. The LED will turn solid green once the connection is successfully completed.
  4. Once the LED is solid green, proceed to Enroll the camera to the account.
WPS mode steps
  1. Open the camera’s housing. Press the oval button located on the bottom of the device to release the housing.
  2. Enter WPS pairing mode. Press and hold the multi-purpose button located on the side of the device (accessible once the housing is removed) for 6 seconds, or until the LED begins blinking blue. Once the LED starts blinking blue, release the button to enter WPS mode.
  3. Activate WPS mode on the router. The camera will begin to connect to the Wi-Fi network. The LED will be solid green when the connection is complete.
  4. Once the LED is solid green, proceed to Enroll the camera to the account.

Enroll the camera to the account

The camera can be enrolled to your customer account using the Alarm.com customer website or Alarm.com app.

Alarm.com customer website steps
  1. Navigate to the Video Device Setup page by entering the following URL using a web browser: www.alarm.com/addcamera. The customer's username and password for the account are required to log in.
    • If the installation tutorial was used, it automatically navigates to this page after completing the tutorial.
  2. Enter the MAC address of the camera, then click Find.
  3. Enter a name for the camera, then click Install.
  4. Follow the on-screen instructions to finish adding the camera. An installation progress bar displays on the screen.
Alarm.com app steps
  1. Log in to the Alarm.com app. The customer's username and password for the account are required to log in.
  2. Tap Menu.
  3. Tap Add Device.
  4. Tap Video Camera.
  5. Tap Enter MAC Address, then enter the camera's MAC address.
  6. Tap Install for the camera on the Device Found page.
  7. Enter a device name, then tap Next.
  8. Follow the on-screen instructions to finish adding the camera. The installation progress displays on the screen.

Once the enrollment process is complete, move the camera to its final location. Prior to installing, verify the signal strength at the installation location using the Alarm.com app. Once the signal strength has been verified, install the device with the included hardware.

Camera mounting overview

The V731B features standard ¼” tripod screw threading, allowing compatibility with a variety of mounting options. A wall plate and wall mount are included in the box for flush surface mounting. Alternatively, the camera can be placed directly on a flat surface or used with a variety of third-party mounts and stands. Follow the instructions below to mount the camera to a flush surface.

To install the ADC-V731B in its final location:

Important: Prior to mounting, verify the signal strength using the Alarm.com app. Once the signal strength has been verified, install the device with the included hardware.

Consider recharging requirements when selecting the installation height. Make sure the person responsible for recharging can easily reach the camera and knows how to remove the battery pack.

  1. Choose the mounting location. The camera should be mounted at least 8 feet above the ground on a flat surface (e.g., a wall or ceiling).
  2. Verify there are no nearby obstructions that could interfere with the camera’s performance, particularly night vision.
  3. Verify the location minimizes glare and avoids capturing unwanted motion (e.g., swaying trees or vehicle traffic), as this may negatively impact battery life.
  4. Mark and drill mounting holes. Use the included mounting plate to mark the desired locations for the mounting screws.
    • If mounting to drywall: Drill two 3/16” holes and insert the included wall anchors.
    • If mounting to wood: Drill two 1/8” holes.
  5. Attach the mounting plate. Align the camera’s mounting plate with the drilled holes. Use the included screws to securely fasten the plate to the mounting surface.

    V731B_attach wall plate.gif

  6. Secure the mount to the plate. Align the mount with the mounting plate following the printed instructions on the plate. Turn the mount until it clicks securely into place.

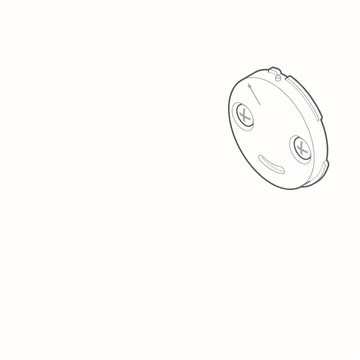

    V731B_attach mount to plate.gif

  7. Attach the camera to the tripod screw.
    1. Remove the optional small security screw from the packaging and insert it into the bottom of the camera to prevent the camera and back housing from separating.
    2. Screw the camera onto the tripod screw threading until it is tight and securely fastened.

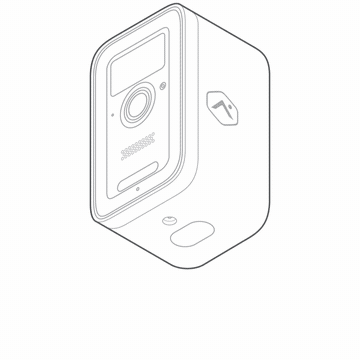

      V731B_attach unit to mount.gif

  8. Adjust the camera angle. Loosen the collar on the mount to adjust the ball joint. Move the camera to point toward the area you want to monitor. Once the camera is positioned correctly, tighten the collar to secure it in place.

Troubleshooting

  1. If you have issues connecting the camera to the account, power cycle the camera and try again.
  2. If issues persist, reset the camera to factory defaults. Press and hold the WPS/Reset button until the LED is flashing green and red (about 12 seconds), then release the button. The camera will reboot to factory default.

Caution: Factory resetting the device will require it to also be deleted from the customer account and re-enrolled.

(Optional) Solar Panel Accessory for V731B Battery Camera (ADC-VACC-SP4W) installation

The ADC-V731B camera's USB-C connection point is designed to be waterproof when used with the ADC-VACC-SP4W solar panel. When attached, the USB-C connector fits snugly against an internal gasket, blocking water from entering. This design has passed outdoor testing to ensure your camera remains safe and functional in any weather.

  • Drill with 3/16" drill bit (optional for wood mount)
  • Screwdriver with #2 Phillips bit

The SP4W features standard ¼" tripod screw threading, allowing compatibility with a variety of mounting options. A wall mount is included in the box for flush surface mounting. Alternatively, the panel can be used with a variety of third-party mounts and stands. Follow the instructions below to mount the panel to a flush surface.

Note: It is recommended to mount the camera first, then find a location within 9 feet of the camera that gets 3 or more hours of direct sunlight a day to mount the solar panel. The rest of the instructions assume that the camera is already mounted.
  1. Choose the mounting location. The solar panel needs to be mounted within 9 feet of the camera.
  2. Verify there are no nearby obstructions that could cause shadows on the solar panel.
  3. Mark and drill mounting holes. Use the included mount to mark the desired locations for the mounting screws.
    • If mounting to drywall, drill two 3/16" holes.
  4. Attach the mount. Align the solar panel's mount with the drilled holes. Use the included screws to securely fasten the mount to the mounting surface.
  5. Attach the solar panel to the tripod screw.
  6. Screw the solar panel onto the tripod screw threading until it is tight and securely fastened.
  7. Adjust the solar panel angle. Loosen the collar on the mount to adjust the ball joint. Move the solar panel to align it according to your location below. Once the solar panel is positioned correctly, tighten the collar to secure it in place.

The solar panel needs to be in a sunny location that gets three or more hours of direct sunlight per day with no shadows.

For the Northern Hemisphere:

The solar panel needs to face south and be tilted to 45 degrees.

For the Southern Hemisphere:

The solar panel needs to face north and be tilted to 45 degrees.

Note: A properly oriented solar panel can charge the camera's battery up to twice as fast as a misaligned one. For more information on optimizing your solar panel installation, see Optimize Solar Panel Accessory (ADC-VACC-SP4W) installation for maximum efficiency.

Stretch the cord from the solar panel to the camera. If you have extra cable, you can wrap it around the back side of the solar panel and use the clips to secure it. Once the cord is aligned properly and the extra is wrapped out of the way, locate the USB-C port on the back of the camera. Open the rubber dust cover and firmly insert the USB-C connector into the camera.

Log in to the Alarm.com app or Alarm.com customer website and open the camera device settings for the camera you have the solar panel plugged into. Verify the solar panel is charging the camera by reviewing the activity section in the app or webpage to see if the camera indicates a power source change.

While still logged in to the Alarm.com app or Alarm.com customer website, open the camera's live view to verify its Field of View was not unintentionally altered while the solar panel was being installed, and also to check that the solar panel is not in the camera's Field of View.

  • Review the physical installation location periodically to make sure the solar panel is still aimed correctly.
  • If the panel has collected dirt or debris, remove any debris and wipe with water and a clean, soft cloth.
  • Review expected charging and maximize solar charging by making adjustments to the positioning as needed.

Maximizing battery life:

Important: The camera will only charge when its battery is within a safe temperature range of approximately 32°F to 113°F (0°C to 45°C).

  • Position the solar panel optimally to maximize charging efficiency.
  • The camera will not charge over 80% on solar power to extend the lifetime of the battery.
  • The ADC-V731B goes into a low power mode until the PIR sensor detects motion. Once the trigger is activated, the camera comes online and processes the video. The more triggers, the faster the battery will be consumed. When using the solar charging solution, it is recommended that the triggers are tuned to eliminate as many false positives as possible.

For more information about the Solar Panel Accessory (ADC-VACC-SP4W), see Solar Panel Accessory (ADC-VACC-SP4W) - Frequently Asked Questions.
