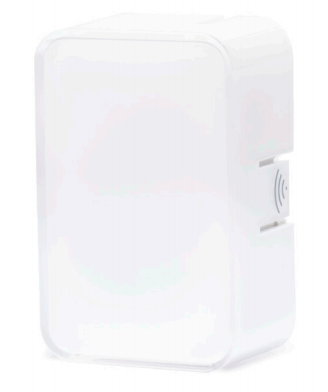

Alarm.com Temperature Sensor (ADC-S2000-T-RB) - Data Sheet
Overview
The Alarm.com Temperature Sensor is specifically designed to work with the Alarm.com Smart Thermostat to provide advanced functionality and precision comfort. With the Temperature Sensor, customers can monitor the temperature of any indoor location and receive temperature alerts through the web or mobile device.
Features
- Maintain the home temperature based on the most lived-in areas
- Keep the nursery at a comfortable temperature when the baby's sleeping
- Monitor individual room temperature around the house
- Get alerts when the temperature drops in key rooms (for example, in the basement near water pipes)
In the box
- CR123 Battery
- Double-sided adhesive tape
- Finishing Nail
Specifications
| Model | ADC-S2000-T-RB |
|---|---|
| Dimensions (L x W x H) | 1.3" x 0.82" x 2.0’’ (33 mm x 21 mm x 51 mm) |
| FCC ID | 2AC3T-B36510RA |
| IC | 12323A-B36510RA |
| Z-Wave Features | Z-Wave Plus |
| Operating Temperature Range | 32°F to 90°F (0°C to 35°C) |
| Power | Battery powered, 3-year battery life |
| Installation Options | Nail or adhesive tape |
| Over-the-air (OTA) Upgrades | Yes |
| Indoor or Outdoor | Designed for indoor use only |
Advanced functionality
The Temperature Sensor Integrates with the Alarm.com Smart Thermostat for advanced functionality.
Room-specific temperature
Control the temperature of any room by pairing the Temperature Sensor with the Smart Thermostat. The Smart Thermostat regulates the temperature by using the data from the Temperature Sensor in that particular room, overriding its own temperature reading. For example, if your Smart Thermostat is in an undesired location of your home (such as a hallway), place a Temperature Sensor in a common area such as the living room and have your Smart Thermostat use the Temperature Sensor readings instead.
Averaged temperature readings
Create a more balanced temperature throughout the home and reduce temperature variations from room to room by creating a temperature set point using the average of the temperature readings from your Temperature Sensors and Smart Thermostat. For example, if there are multiple bedrooms, set the Smart Thermostat to bring the average temperature across all bedrooms to the desired setpoint.
Schedules
The Temperature Sensor can be used with the Smart Thermostat schedule to provide comfort in different locations of the home during certain times of the day. For example, during the evening, the Smart Thermostat can make sure the downstairs living room is comfortable, and then automatically bring the comfort to the bedroom at night
Alerts
Stay informed of potentially dangerous temperatures by receiving a text or email to notify you if the temperature in one location is unusually high or low. For example, place a Temperature Sensor in the basement or attic, near water pipes.
