Alarm.com Smart Thermostat HD (ADC-T40K-HD)
Quick facts

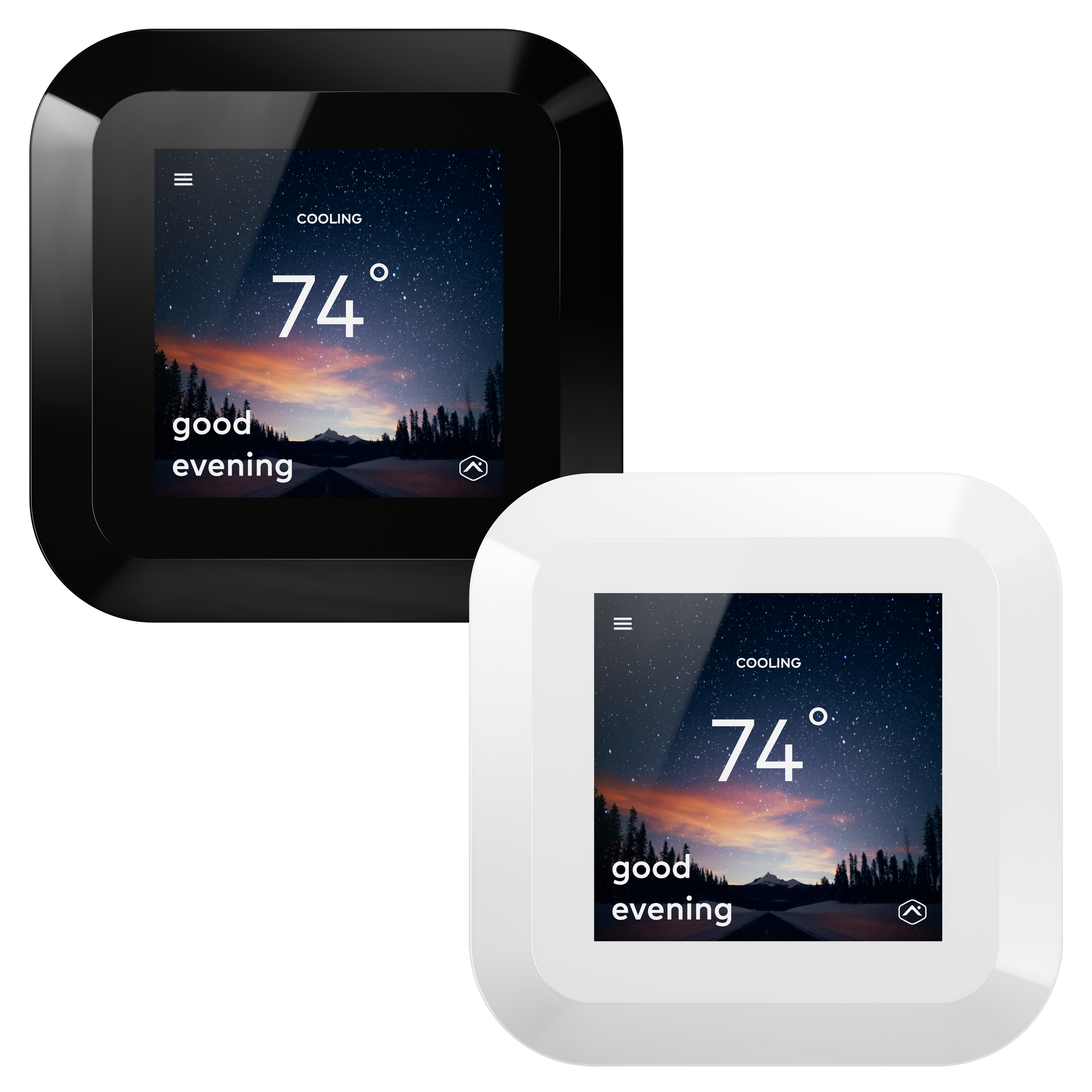

| Device Image |
  _Front_view_Black_and_White.png?revision=1&size=bestfit&width=250&height=250) |
|---|---|
| Manufacturer | Alarm.com |
| Power Requirements |
24 VAC with C-Wire |
| Alarm.com Auto Mode | Yes. Requires both heat and cool stages. |
| Local Thermostat Schedules |
Yes. Only when not enrolled to a Z-Wave network. |
| Z-Wave Security 2 (S2) | Yes |
| Z-Wave SmartStart | Yes |
| Z-Wave Enrollment |
If the Z-Wave controller is not SmartStart or S2-compatible, this device can be enrolled in the traditional way as an S0 device.
|
| Factory Reset |
To reset using the Display:
To reset without using the Display:If you are unable to use the Display, you may also reset the device to factory settings from the Thermostat. Note: It is recommended to delete the Smart Thermostat HD from the Z-Wave network before performing this reset.
|
on the Display.Installation guides
- Alarm.com Smart Thermostat HD (ADC-T40K-HD) - Installation GuideThis guide provides instruction for installation and configuration of the Alarm.com T40K thermostat.
User guides
How-to troubleshooting guides
Frequently asked questions
- Can the Smart Thermostat HD (ADC-T40K-HD) be powered by batteries?No. The Smart Thermostat HD cannot be powered by batteries. It requires a C wire for power.
- Should a physical jumper be used with the Alarm.com Smart Thermostat HD (ADC-T40K-HD)?Do not use a physical jumper between RH and RC on the Smart Thermostat HD because it can damage the thermostat over time and cause wire detection to complete incorrectly.
- What are the components of the Smart Thermostat HD (ADC-T40K-HD)?Three components make up the Smart Thermostat HD: Trim plate Thermostat (ADC-T40) Display (ADC-T40-HD): Trim plate, thermostat, display
- Why does the Smart Thermostat HD (ADC-T40K-HD) setup wizard recommend a different HVAC system than expected?The Thermostat has mechanical wire detection in the wire terminals, meaning any terminal with a wire inserted will indicate there is a wire present during setup, even if the wire is unused by the HVAC system. Sometimes there are extra, unused wires present within the wire bundle at the wall.
