SDS Indoor PoE Gunshot Sensor (ADC-SDS2001) - Data sheet

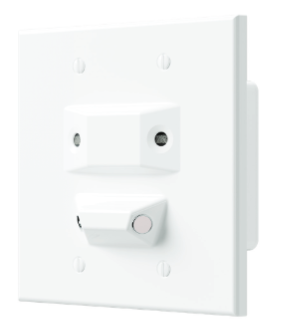

The SDS Indoor PoE Gunshot Sensor is a dual-mode gunshot detection sensor from Shooter Detection Systems Powered by Alarm.com. The sensor can detect shots from up to 40 feet away by recognizing the infrared (flash) and acoustic (bang) signature of a gunshot.
The sensor is powered and communicates primarily over Ethernet with Alarm.com. The Alarm.com Cell Connector is a required additional install that provides life-saving cellular backup in case of internet failures. The gunshot sensor can be installed on accounts with or without a security panel, providing 24/7 monitoring of gunshots and integration with Alarm.com's suite of products, including Pro Series video cameras.
For more information about how Shooter Detection Systems (SDS) communicated with the Monitoring Station, see Shooter Detection Systems (SDS) - Monitoring Station Forwarding.
Features
- 99.9% accuracy in gunshot recognition
- Dual mode detection, infrared and acoustic profile of gunshot
- Power over Ethernet
- Detection for a wide range of firearm calibers
- Wall or ceiling mountable
Requirements
- SDS Gunshot Detection Handheld Tester (ADC-SDS1000)
- CAT5, CAT5e, or CAT6 Ethernet cable (maximum cable length of 100 meters) with an RJ45 connector
- Low voltage frame or dual gang plate/box
- Power-over-Ethernet switch
- Alarm.com Cell Connector (ADC-NK-200T-A-CC)
Specifications
| SKU | ADC-SDS2001 |
|---|---|
| Field of View and Coverage Range | 180 degrees, 2500 square feet, 40-foot range |
| Ethernet connection |
CAT5, CAT5e, or CAT6 with RJ45 connector For more information about cabling, see Cable considerations. |
| Temperature | 32°F to 113°C (0°C to 45°C) |
| Mounting height | 8-16 ft |
| Power | Low Power Class 2 device, PoE (802.3af) |
| Dimensions (LxWxD) | 4.6" x 4.6" x 1.5" (11.7 x 11.7 x 3.81 cm) |
| Weight | <0.5 lbs (<0.25 kg) |
| Compliance | FCC, RoHS |
