What is the 2GIG Super Switch Takeover Module?

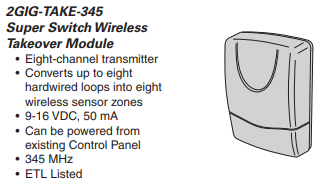

The 2GIG‐TAKE‐345 Super Switch is 2GIG’s wireless takeover module. This unit is designed to convert eight hardwired zones into eight wireless zones to make installation simple and work with existing 12‐volt control panels. The module is to be mounted next to the existing control panel where the hardwired zones are connected. All of the zones on the Super Switch act as supervised wireless zones.

Technically there is no limit to the number of Super Switches that can be on an account, as long as it does not exceed the number of available zones. For example, 2GIG GC3 supports 100 zones, since eight zones can be wired into a single Super Switch, the system supports up to 12 Super Switches, which would equate to 96 zones wired to the Super Switches.


For information about installing the 2GIG-TAKE-345, see 2GIG Super Switch Takeover Module (2GIG-TAKE-345) - Installation Guide.
