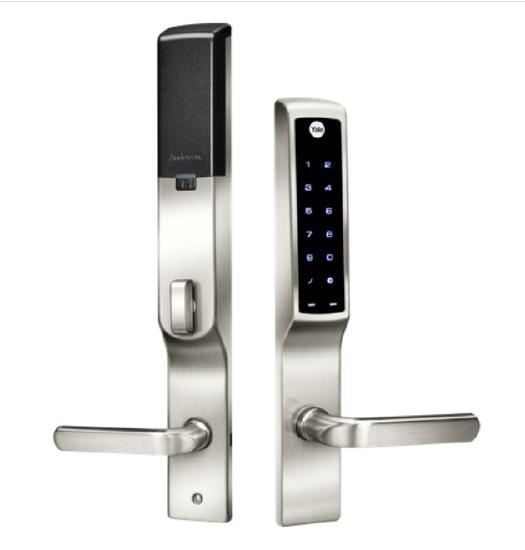

Yale Assure Lock for Andersen Doors (YRM276-ZW2)

To place the lock in Enroll Mode:

1. Enter the master code, followed by a press of the [⚙ Gear Button].
2. Press [7], followed by the [⚙ Gear Button].
3. Press [1], followed by the [⚙ Gear Button].

To place the lock in Delete Mode:

1. Enter the master code, followed by a press of the [⚙ Gear Button].
2. Press [7], followed by the [⚙ Gear Button].
3. Press [3], followed by the [⚙ Gear Button].

1. Remove the battery cover and batteries.
2. Remove the interior lock to access the reset button hole.
3. The reset button is located above the PCB cable connectors.
4. Re-insert 3 batteries and insert a small screwdriver into the hole; holding the reset button for 3 seconds.
5. While still holding the reset button, insert the fourth battery and hold the reset button for an additional 3 seconds.
6. Release the reset button.
7. Re-install the interior lock onto the door.

Upon reset, Master PIN Code creation is the only option available and must be performed prior to any other programming of the lock.
