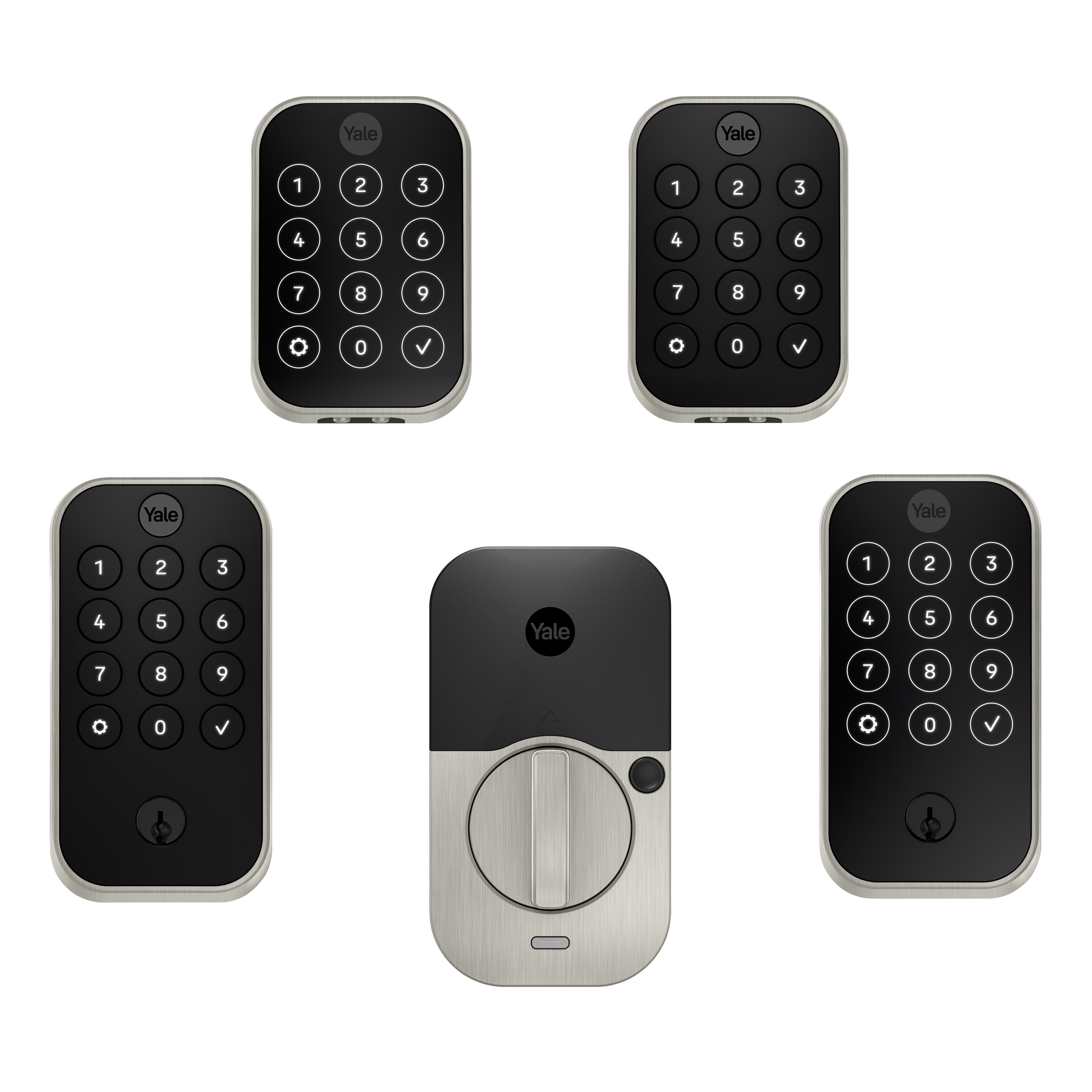

Yale Assure Lock 2 Pro Deadbolts/Yale Pro® 2 ZW3 Locks (YRD614/YRD624/YRD634/YRD654)

Device Image
Manufacturer	Yale
User Code Limit	250
Digits in User Code	4-8
Keypad Layout	1 number per key
Auto Re-Lock Option	Yes
Removable Z-Wave Card	Yes
Z-Wave Security 2 (S2)	No
Z-Wave SmartStart	No
Z-Wave Enrollment	Begin with the lock within 6 feet of the panel or module. Place the panel into Add Mode. Press the small black button on the interior of the lock until 1 and ⚙ are illuminated. Press [1], followed by the gear button [⚙] to enter the settings menu. Enter the 4-8 digit programming code, followed by the gear button [⚙]. Press [7], followed by the gear button [⚙] to select the Z-Wave setting. Press [1], followed by the gear button [⚙] to enroll. Wait 2 minutes before locally operating the device. Verify that the lock appears on the Alarm.com customer website and responds to lock/unlock commands. Move the lock to its final location.
Factory Reset	Remove one battery. Insert reset pin into the designated reset hole. Press and hold the reset pin. While holding the reset pin, reinsert battery. Keep holding the reset pin for 5 more seconds. Take out the reset pin. Note: If the lock was enrolled in a Z-Wave network prior to reset, it will need to be set up again.
