Kwikset 912 Lever Lock (SmartCode Lever 99120)

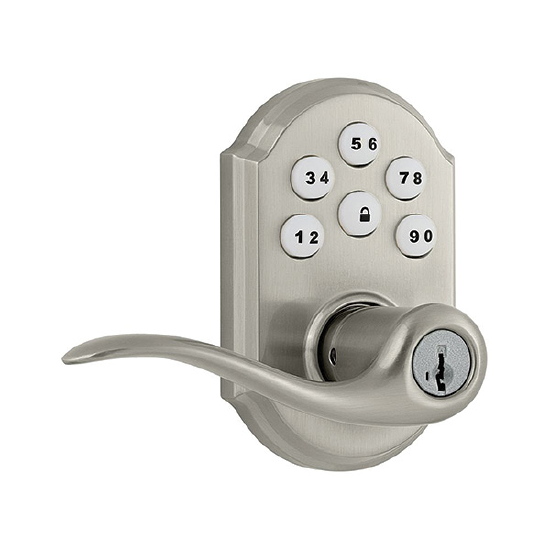

Device Image
Manufacturer	Kwikset
User Code Limit	30
Digits in User Code	4 to 8
S2	No
Keypad Layout	2 digits per button
Auto Re-lock Option	Yes
Mate Button Location	The Z-Wave Mate button is the white button to the left of the SmartCode logo, which is found on the Interior panel after removing the cover.
Removable Z-Wave Card	Yes, under back cover on rim in front of battery cartridge.
Factory Reset Method	Remove battery pack. Press and hold the program button on the back of the lock while reinserting the battery pack. Continue to hold the program button until the lock sounds one long beep (this will take about 30 seconds). Release the program button. The lock will sound 1 long beep accompanied by a flashing red LED. Shortly after, the lock will sound 3 short beeps followed by 2 long beeps and a quick flash of green LED. The lock has now been factory reset.
