Zooz ZEN74 800LR Toggle Dimmer Switch
Quick facts

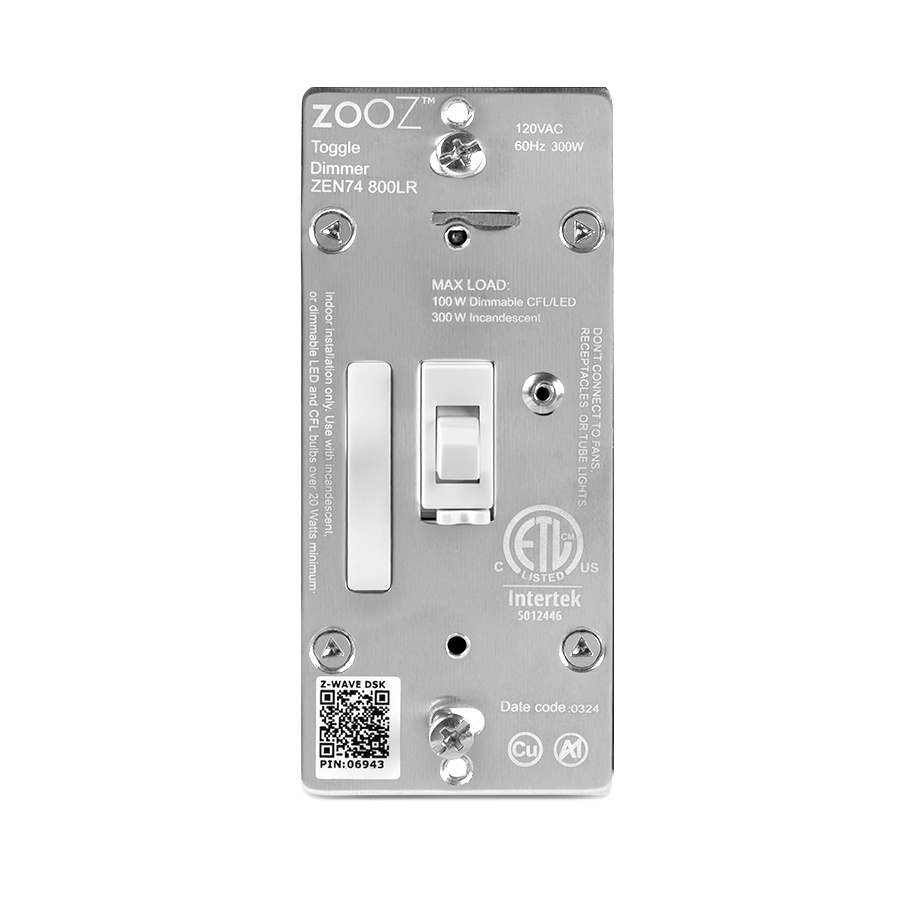

| Device Image |  |
|---|---|
| Manufacturer | Zooz |
| Power Requirements | 120 VAC, 60 Hz |
| Maximum Load | 100 W LED, 300 W incandescent |
| Dimming | Compatible |
| Z-Wave Security 2 (S2) | Compatible |
| Z-Wave SmartStart | Compatible |
| Z-Wave Long Range (LR) | Compatible |
The Zooz ZEN74 800LR Toggle Dimmer Switch can be enrolled in or removed from a Z-Wave network by following the instructions below.
For more information about installation, see the manufacturer's Zooz ZEN74 800LR Toggle Dimmer Switch - Installation Guide.
To enroll a Zooz ZEN74:
This device can be enrolled using the method as a SmartStart, S2, or S0 device.
To enroll as a SmartStart device:
It is recommended to enroll this device as a SmartStart device to eliminate the need to put Z-Wave controllers into Add Mode or to trigger devices (as is the case when enrolling non-SmartStart S2 devices).
For information about SmartStart compatibility and the enrollment process, see Add or remove a Z-Wave SmartStart-enabled device.
To enroll as an S2 device:
If the Z-Wave controller is not SmartStart-compatible, it is recommended to enroll this device as an S2 device for enhanced security and encryption features.
For information about this process, see Add an S2-encrypted Z-Wave device.
To enroll as an S0 device:
If the Z-Wave controller is not SmartStart or S2-compatible, this device can be enrolled in the traditional way as an S0 device.
- Place the Z-Wave controller into Add Mode.
- Toggle up 3 times quickly.
- The blue LED will blink blue to signal communication.
- The green LED will turn on for 3 seconds when the device is successfully added to the Z-Wave® network. The LED will turn red for 3 seconds if the pairing attempt fails.
To delete a Zooz ZEN74:
- Place the Z-Wave controller into Delete Mode.
- Toggle the dimmer down 3 times quickly.
- The blue LED will blink blue to signal communication.
- The green LED will turn on for 3 seconds when the device is successfully deleted from the Z-Wave controller.
To reset a Zooz ZEN74:
- Hold the toggle down for 10 seconds until the LED starts blinking.
- Release the toggle, and immediately toggle the switch down 5 times to complete the reset.
- The LED will blink blue 3 times and turn red for 3 seconds to confirm a successful reset.
