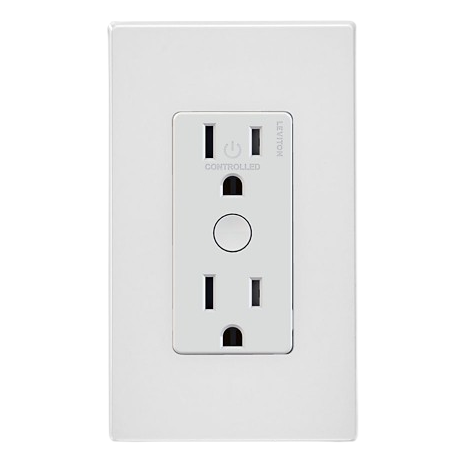

Leviton Smart Outlet, 700 Series (ZW15R)

Device Image
Manufacturer	Leviton
Power Requirements	15 A - 120 VAC, 50/60 Hz
Maximum Load	15 A
Dimming	No
Z-Wave Security 2 (S2)	Yes
Z-Wave SmartStart	Yes
Z-Wave Long Range (LR)	No
Z-Wave Controlled Outlet	Top
Z-Wave Enrollment	If the Z-Wave controller is not SmartStart or S2-compatible, this device can be enrolled as an S0 device. Place the Z-Wave controller into Add Mode. Press and hold the button on the device for 7 seconds. The LED on the device will turn amber. Tap the button again. The LED will flash green. The LED will flash green four times to indicate successful enrollment.
