Factory reset an ADC-SG130 to its default settings

Last updated
Save as PDF

Resetting a device to its factory default settings removes all of its existing programming and memory. Most devices must be removed from the account and re-enrolled after a factory reset.

Important: Wait at least 2 minutes for the device to power on fully before performing the following procedure. The factory reset may fail if the device is still powering on.

Reset procedure	Button location	Button image

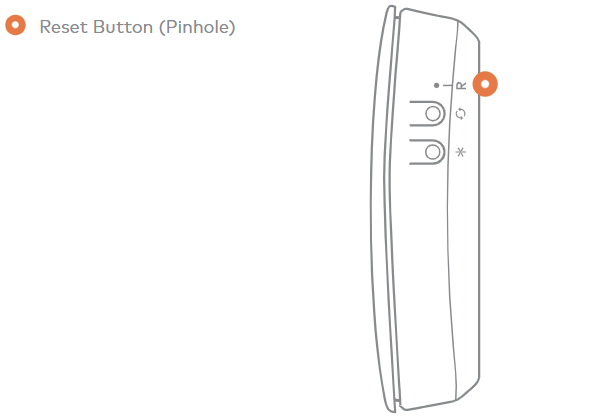

Press and hold the [R] pinhole button for 15 to 20 seconds (use a paper clip or tool if necessary). All LEDs will flash simultaneously to indicate that the device will reset. Wait for the Power and Communication LEDs to become solid before trying to use the device again.	The reset button is in the [R] pinhole on the side of the device.
