Manage network settings on the IQ WiFi 6

  1. Last updated
  2. Save as PDF

Important: If you do not see the options outlined on this page, you may not have the required permissions to complete this action.

Please contact your Dealer Administrator for more information.

Once the IQ WiFi 6 is connected to a customer account, network settings (i.e., port forwarding, DHCP reservations, and Wi-Fi information) can be managed using the Alarm.com customer website or the web interface.

For more information about connecting the IQ WiFi 6 to a customer account, see Connect the IQ WiFi 6 to a customer account.

Note: If multiple IQ WiFi 6 devices are used at a location, one device will be in the Controller role and all additional IQ WiFi 6 devices will be Agents that act as access points for the controller. The Controller and Agents create a mesh network that shares Security, Primary, and Guest network information.

Manage network settings

Network settings can be managed using the Alarm.com customer website or locally using the web interface.

  1. Log in to the Alarm.com customer website.
  2. In the Wi-Fi card, click Details.
  3. Click Settings.

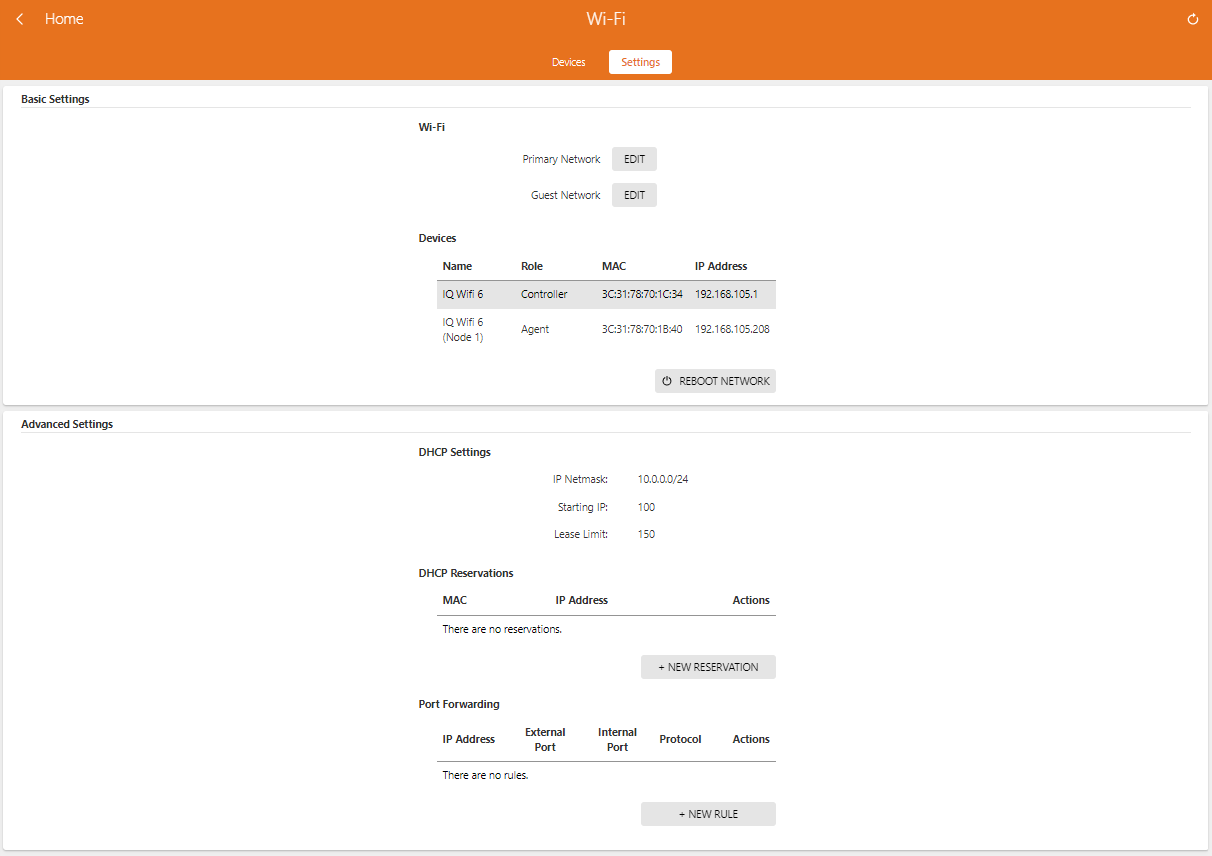

    IQ Wi-Fi 6_Settings page_customer website.png

  4. Manage desired network settings.
    • To manage the primary or guest network information:
      1. In Wi-Fi, click Edit for Primary Network or Guest Network.
      2. Configure the network information.
        IQ Wi-Fi 6_Primary network_customer website.png
        IQ Wi-Fi 6_Guest network_customer website.png
      3. Click Save. A confirmation message appears. Updates will display on the page once the device has processed it.
    • To create port forwarding rules:
      1. In Port Forwarding, click New Rule.
      2. Configure the port forwarding rule.

        IQ Wi-Fi 6_Port forwarding_customer website.png

      3. Click Save. The new rule displays once the page is refreshed.

        IQ WiFi 6_Port forwarding rules .png

    • To create DHCP Reservations:
      1. In DHCP Reservations, click New Reservation.
      2. Configure the port forwarding rule.

        Important: The IQ WiFi 6 may require a restart for the new IP address to take effect.

        IQ Wi-Fi 6_DHCP Res_customer website.png

      3. Click Save. The new reservation displays once the page is refreshed.
  1. Using an Internet browser on a device locally connected to the IQ WiFi 6 network, navigate to 192.168.105.1 in the URL.
  2. Login to the router.
    • Default user name and password:
      • Username: admin
      • Password: located on the bottom of each IQ WiFi 6 unit.

        Note: Once the password has been changed from the default password, the only way to access IQ WiFi 6 web interface is by using the new updated password. If forgotten, the only other way to gain access is to perform a master reset on the IQ WiFi 6 by pressing and holding the physical reset button for 20 seconds.

  3. Click Network to manage network settings.
  4. Click to select the settings to manage:
    • Interfaces: Interface overview
    • WIFI: Change Wi-Fi network information (e.g., password), wireless overview, associated stations, and agents.
    • DHCP and DNS: Dnsmasq is a combined DHCPServer and DNS-Forwarder for NAT firewalls and static assigned addresses.
    • Firewall: General settings, port forwards, and traffic rules tabs.
    • Speed Test: Test ISP speed between server and IQ WiFi 6.
    • Mesh: Mesh allows user changer mesh related settings.

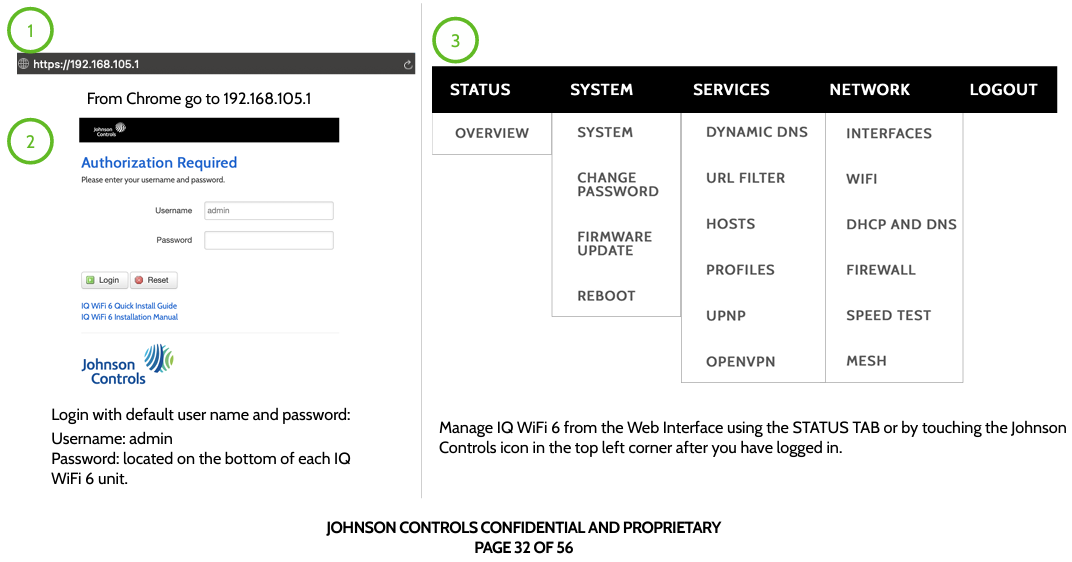

The following image is from the device installation guide. For more information about using the web interface, see Qolsys IQ WiFi 6 - Installation Guide or contact the manufacturer.

IQ WiFi 6_Web interface.png
