Alarm.com Smart Chime (ADC-W115C) - Installation Guide

To ensure sufficient Wi-Fi signal, complete these steps with the chime in close proximity to your router.

1. Plug the Alarm.com Smart Chime into a non-switched electrical outlet. Wait for the Power LED to change from blinking to solid.
2. Press and hold the WPS button for approximately five seconds or until the LED changes from blinking rapidly to blinking slowly.
3. Activate WPS mode on your router. Consult your router’s user guide for more information.
4. The Alarm.com Smart Chime will begin to connect to the Wi-Fi network. The Smart Chime’s Router LED (cloud icon) will begin blinking when a connection is established and will become solid when an internet connection is successfully established.
5. Once the Router LED is solid, enroll the Smart Chime to the customer account using the steps in Enroll the Smart Chime to the account.

To ensure sufficient Wi-Fi signal, complete these steps with the chime in close proximity to your router.

1. Plug the Alarm.com Smart Chime into a non-switched electrical outlet. Wait for the Power LED to change from blinking to solid.
2. On an Internet-enabled device, connect to the Wi-Fi network Chime Config (XX:XX:XX) where XX:XX:XX is the last six characters of the Alarm.com Smart Chime’s MAC address, located on the back of the chime or on the packaging. To connect, use the Wi-Fi password located on the back of the chime, on the packaging, or on the sticker that is included in the packaging.

   Note: This configuration network will only be available when the device is not connected to the home’s Wi-Fi network. To switch to a different Wi-Fi network, while actively connected to the original network, use the Alarm.com Smart Chime’s Wireless Network Settings Page on the Alarm.com customer website.

3. On the same device, open a web browser and enter: http://connect.alarm.com or http://192.168.173.1/ in the URL field. Follow the on-screen instructions to add the Alarm.com Smart Chime to the Wi-Fi network. The Router LED (cloud icon) will begin blinking when a connection is established and will become solid when an internet connection is successfully established.
4. Once the Router LED is solid, enroll the Smart Chime to the customer account using the steps in Enroll the Smart Chime to the account.

1. Navigate to the Video Device Setup page by entering the following URL using a web browser: www.alarm.com/addcamera (the customer username and password is required).
   • If the installation tutorial was used, it automatically navigates to this page after completing the tutorial.
2. Enter the MAC address of the Smart Chime, then click Find.
3. Enter a name for the Smart Chime, then click Install.
4. Follow the on-screen instructions to finish adding the chime. An installation progress bar displays on the screen.
   1.
   2.

Once the installation is complete, unplug the chime and install it in its final location.

1. Log in to the Alarm.com app. You will need the username and password of the account to log in.
2. Tap .
3. Tap Add Device.
4. Tap Video Camera.
5. Tap Enter MAC Address, then enter the Smart Chime's MAC address.
6. Tap Install for the Smart Chime on the Device Found page.
7. Enter a device name, then tap Next.

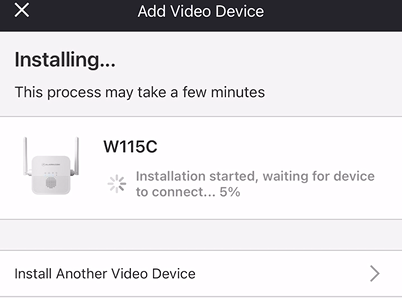

8. Follow the on-screen instructions to finish adding the chime. The installation progress displays on the screen.
   1.
   2.
   3.
   4.

Once the installation is complete, unplug the chime and install it in its final location.

Be sure to add the Alarm.com Smart Chime to an Alarm.com account before using WPS mode to add video cameras or other Wi-Fi devices to the Wi-Fi network.

1. To enter WPS mode, press and release the WPS button on the Smart Chime.
2. The WPS LED will rapidly flash to indicate that the device is in WPS mode.
3. Press the WPS button on the device you want to add to the Smart Chime’s Wi-Fi network.
4. The Devices LED will flash three times and will become solid upon a successful pairing.
5. Once devices are connected, verify all devices function properly.

Be sure to add the Alarm.com Smart Chime to an Alarm.com account before using AP mode to add video cameras or other Wi-Fi devices to the Wi-Fi network.

1. The Smart Chime broadcasts its own network. For more information about finding the chime's network information, see View the Wi-Fi name (SSID) and password of the ADC-W115C.
2. Using AP mode from the video device, connect the video device to the Smart Chime's network. For more information about AP mode for video devices, see AP mode Installation guide.
3. Once devices are connected, verify all devices function properly.

1. Log in to the Alarm.com customer website.
2. Click Video.
3. Click Settings.
4. Select the desired video device.
5. Click Network.
6. Click Change Network.
7. Click Access Point.
8. Click to select the Smart Chime.
9. To apply the new wireless settings to all the cameras on the account:
   1. Click to expand Advanced.
   2. Click to select Apply these settings to all wireless cameras on this account.
10. Click Continue to apply the new wireless network settings.
11. Allow a few minutes for the devices to connect to the Smart Chime, then verify all devices function properly.
