Output Control Expansion Module (ADC-AC-MR16OUT) - Installation Guide
Notice: Installation and maintenance servicing for this device should only be performed by qualified personnel.
Note: This article specifically covers the installation of the Output Control Expansion Module (ADC-AC-MR16OUT). For instructions on how to set up a broader access system, see Smarter Access Control - Quick Start Guide.
The ADC-AC-MR16OUT expansion module provides a solution for controlling 16 additional outputs. Two dedicated inputs are provided for cabinet tamper and UPS fault monitoring. Communication to the Mercury Series Door Controller is accomplished using a 2-wire RS-485 interface. The ADC-AC-MR16OUT requires 12-24 VDC for power. See the following figure for component location.
Requirements
- A Smarter Access Control Plus service package
Wiring
Connections
| TB1-1 | Relay 1 | NO | Relay 1 Normally Open Contact |
|---|---|---|---|
| TB1-2 | Relay 1 | C | Relay 1 Common Contact |
| TB1-3 | Relay 1 | NC | Relay 1 Normally Closed Contact |
| TB1-4 | Relay 2 | NC | Relay 2 Normally Closed Contact |
| TB1-5 | Relay 2 | C | Relay 2 Common Contact |
| TB1-6 | Relay 2 | NO | Relay 2 Normally Open Contact |
| TB2-1 | Relay 3 | NC | Relay 3 Normally Closed Contact |
| TB2-2 | Relay 3 | C | Relay 3 Common Contact |
| TB2-3 | Relay 3 | NO | Relay 3 Normally Open Contact |
| TB2-4 | Relay 4 | NC | Relay 4 Normally Closed Contact |
| TB2-5 | Relay 4 | C | Relay 4 Common Contact |
| TB2-6 | Relay 4 | NO | Relay 4 Normally Open Contact |
| TB3-1 | Relay 5 | NC | Relay 5 Normally Closed Contact |
| TB3-2 | Relay 5 | C | Relay 5 Common Contact |
| TB3-3 | Relay 5 | NO | Relay 5 Normally Open Contact |
| TB3-4 | Relay 6 | NC | Relay 6 Normally Closed Contact |
| TB3-5 | Relay 6 | C | Relay 6 Common Contact |
| TB3-6 | Relay 6 | NO | Relay 6 Normally Open Contact |
| TB4-1 | Relay 7 | NC | Relay 7 Normally Closed Contact |
| TB4-2 | Relay 7 | C | Relay 7 Common Contact |
| TB4-3 | Relay 7 | NO | Relay 7 Normally Open Contact |
| TB4-4 | Relay 8 | NC | Relay 8 Normally Closed Contact |
| TB4-5 | Relay 8 | C | Relay 8 Common Contact |
| TB4-6 | Relay 8 | NO | Relay 8 Normally Open Contact |
| TB5-1 | Relay 9 | NC | Relay 9 Normally Closed Contact |
| TB5-2 | Relay 9 | C | Relay 9 Common Contact |
| TB5-3 | Relay 9 | NO | Relay 9 Normally Open Contact |
| TB5-4 | Relay 10 | NC | Relay 10 Normally Closed Contact |
| TB5-5 | Relay 10 | C | Relay 10 Common Contact |
| TB5-6 | Relay 10 | NO | Relay 10 Normally Open Contact |
| TB6-1 | Relay 11 | NC | Relay 11 Normally Closed Contact |
| TB6-2 | Relay 11 | C | Relay 11 Common Contact |
| TB6-3 | Relay 11 | NO | Relay 11 Normally Open Contact |
| TB6-4 | Relay 12 | NC | Relay 12 Normally Closed Contact |
| TB6-5 | Relay 12 | C | Relay 12 Common Contact |
| TB6-6 | Relay 12 | NO | Relay 12 Normally Open Contact |
| TB7-1 | Relay 13 | NC | Relay 13 Normally Closed Contact |
| TB7-2 | Relay 13 | C | Relay 13 Common Contact |
| TB7-3 | Relay 13 | NO | Relay 13 Normally Open Contact |
| TB7-4 | Relay 14 | NC | Relay 14 Normally Closed Contact |
| TB7-5 | Relay 14 | C | Relay 14 Common Contact |
| TB7-6 | Relay 14 | NO | Relay 14 Normally Open Contact |
| TB8-1 | Relay 15 | NC | Relay 15 Normally Closed Contact |
| TB8-2 | Relay 15 | C | Relay 15 Common Contact |
| TB8-3 | Relay 15 | NO | Relay 15 Normally Open Contact |
| TB8-4 | Relay 16 | NC | Relay 16 Normally Closed Contact |
| TB8-5 | Relay 16 | C | Relay 16 Common Contact |
| TB8-6 | Relay 16 | NO | Relay 16 Normally Open Contact |
| TB9-1 | Cabinet Tamper | CT | Cabinet Tamper |
| TB9-2 | Cabinet Tamper | GND | Cabinet Tamper |
| TB9-3 | Power Fault | BA | Power Fault |
| TB9-4 | Power Fault | GND | Power Fault |
| TB10-1 | 2-Wire RS485 Bus | TR+ |
SIO Port |
| TB10-2 | 2-Wire RS485 Bus | TR- | SIO Port |
| TB10-3 | Not Used | ||
| TB10-4 | Not Used | ||
| TB10-5 | GND | Ground | |
| TB11-1 | Input/Output Power | VIN | Input Power 12-24 VDC |
| TB11-2 | Input/Output Power | VOUT | Output Power |
| TB11-3 | Input/Output Power | GND | Ground |
Status LEDs
Power-up:All LEDs OFF. |
Initialization:Once power is applied, initialization of the module begins. When initialization is completed, LEDs A, B, CT, and BA are briefly sequenced ON then OFF. |
Run time:After a successful initialization, the LEDs have the following meanings:
The ADC-AC-MR16OUT accepts 12 to 24 VDC for power on TB7. Locate the power source as close to the ADC-AC-MR16OUT as possible. Make power connection with minimum of 18 AWG wires. |
|
Communication Wiring
The ADC-AC-MR16OUT communicates to an Alarm.com Mercury Series Door Controller using a 2-wire RS-485 interface. The ADC-AC-MR16IN allows for multi-drop communication on a bus of up to 4,000 feet (1219 m). Use twisted pair (minimum 24 AWG) with drain wire and shield for communication. If the ADC-AC-MR16IN is the last device on the communication bus, jumper J1 must be installed.
RS-485 Wiring using the ADC-AC-LP1501 Door Controller
Note: For ease of install, daisy chain expansion modules together. Wire each expansion module to the next module instead of wiring directly back to the controller.
Line Termination
For ADC-AC-MR16OUT modules at the end of the communication line, install jumper J1.
Note: The EOL jumper should be installed at both ends of the communication line. This typically includes the controller and last expansion module
Relay Wiring
16 Form-C contact relays are provided for controlling door lock mechanisms or other devices. Each relay has a Common pole (C), a Normally Open pole (NO), and a Normally Closed pole (NC). When momentarily delivering power to unlock the locking hardware (fail secure), the Normally Open and Common poles are used. When momentarily removing power to unlock the locking hardware (fail-safe), the Normally Closed and Common poles are used. Check with local building codes for proper egress door installation. 18 AWG minimum recommended for electric locking hardware.
The current ratings for relay K1 are 5 A @ 30 VDC for normally open (NO) contact and 3 A @ 30 VDC for normally closed (NC) contact. The current rating for relay K2 is 1 A @ 30 VDC. Load switching can cause abnormal contact wear and premature contact failure. Switching of inductive loads (strike) also causes EMI (electromagnetic interference), which may interfere with normal operation of other equipment. To minimize premature contact failure and to increase system reliability, a contact protection circuit may be used.
The following circuit is recommended. Locate the protection circuit as close to the load as possible (within 12 inches [30 cm]), as the effectiveness of the circuit will decrease if it is located far away.

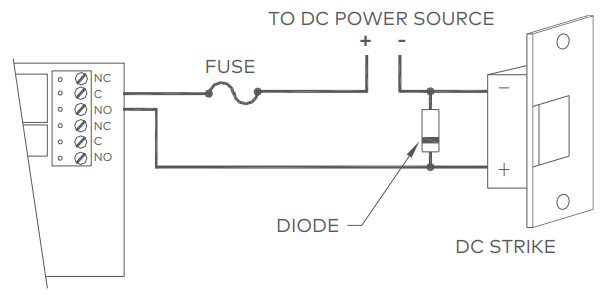

Typical DC Door Strike Wiring
Diode Selection
- Diode current rating: 1x strike current
- Diode breakdown voltage: 4x strike voltage
- For 12 VDC or 24 VDC strike, diode 1N4002 (100 V/1 A) typical
Inputs for Cabinet Tamper/ Power Fault
Input CT and input BA are used for monitoring cabinet tamper and power failure with normally closed contacts. These two inputs are for contact closure monitoring only, and do not use EOL resistor(s). If these inputs are not used, install a short piece of wire at the input to indicate a safe condition.
Specifications
Important: The Interface is for use in low voltage, class 2 circuits only. The installation of this device must comply with all local fire and electrical codes.
| Input Power | 12 to 24 VDC ± 10%, 1100 mA max |
|---|---|
| Communication | 2-Wire RS-485 |
| Inputs | 2 unsupervised, dedicated for cabinet tamper and UPS fault monitoring |
| Outputs | 16 Form-C relay outputs: Normally Open (NO): 5 A @ 30 VDC resistive, Normally closed (NC): 3 A @ 30 VDC resistive |
| Certifications | UL294 Recognized, FCC Part 15 Class A, CE Compliant, RoHS (2011/65/EU & 2015/863), EU REACH (1907/2006), California Proposition 65, NIST Certified Encryption |
| Dimensions (L x W x H) | 8 x 6 x 1" (20.3 x 15.2 x 2.5 cm) |
| Temperature |
32°F – 158°F (0°C – 70°C) operational -67°F – 185°F (-55°C – 85°C) storage |
| Operating Humidity | 5-95% (non-condensing) RH |
Warranty
Mercury Security warrants the product is free from defects in material and workmanship under normal use and service with proper maintenance for one year from the date of factory shipment. Mercury Security assumes no responsibility for products damaged by improper handling or installation. This warranty is limited to the repair or replacement of the defective unit.
There are no expressed warranties other than set forth herein. Mercury Security does not make, nor intends, nor does it authorize any agent or representative to make any other warranties, or implied warranties, and expressly excludes and disclaims all implied warranties of merchantability or fitness for a particular purpose.
Returns must be accompanied by a Return Material Authorization (RMA) number obtained from customer service, and prepaid postage and insurance.
Liability
The Interface should only be used to control exits from areas where an alternative method for exit is available. This product is not intended for, nor is rated for operation in life-critical control applications. Mercury Security is not liable under any circumstances for loss or damage caused by or partially caused by the misapplication or malfunction of the product. Mercury Security's liability does not extend beyond the purchase price of the product.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
